Roller Shutters

Armourguard security roller shutters

The Armourguard range of roller security shutters delivers the highest level of security and durability. Constructed entirely from galvanised steel with variants including insulated models and models offering through vision. It has a wide range of applications from shop front security shutters through to industrial doors.  Choose from 10 models.

Armourguard Security Shutters Model C1

A best seller due to its versatility. It offers a high level of security.

Available in many design variations to suit specific site requirements. The 76 mm curved galvanised steel sections are available in 3 thicknesses dependant on security requirements. Manual or electrical operation. Recommended maximum width 10,000 mm.

  • Star Rating
    Fire Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Security Protection

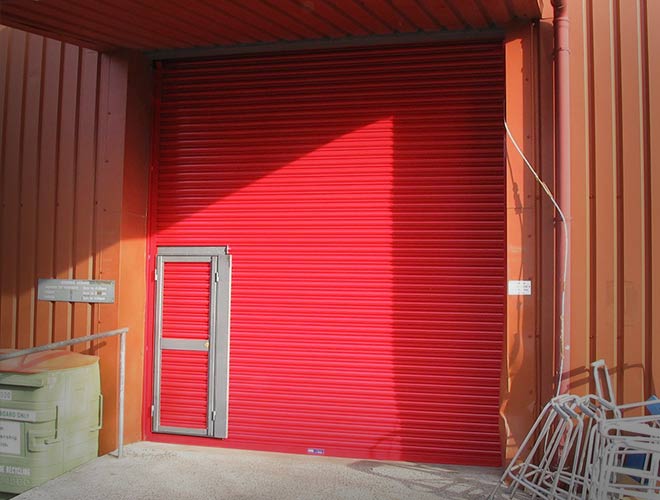

Armourguard Security Shutters Model C2

The Model C2 is specifically designed for premises requiring maximum durability. It delivers high levels of security and weather resistance.

Outer face coated in 200 micrometer HP colour coat  heavy duty plastisol to BS EN 10147. The reverse side with 2 coats of anti-corrosive primer. Recommended maximum width 10,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Armourguard Through Vision Shutters Model P1

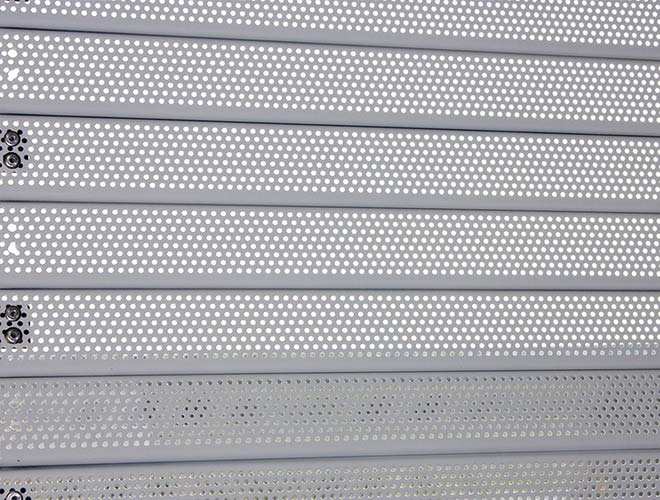

The Model P1 steel security shutters provides 30% through vision and a degree of ventilation via 3 mm perforations throughout each 0.9 mm thick galvanised steel section. Offers a medium level of security.

Manual or electric operation depending on specification. Recommended maximum width 3500 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Armourguard Through Vision Shutters Model P2

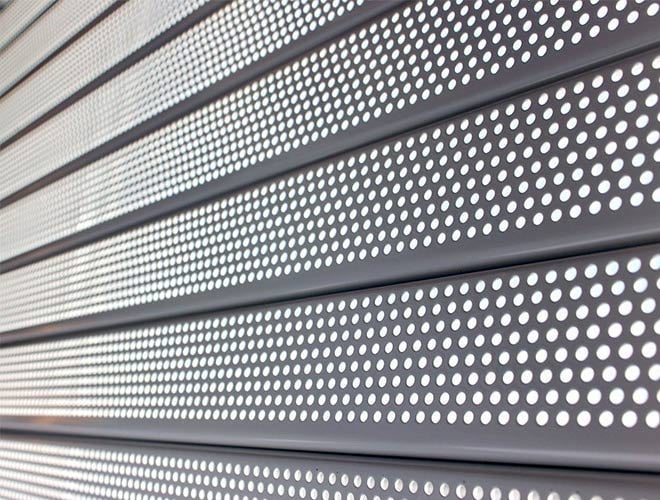

The Model P2 delivers a high level of security whilst providing 30% through vision and a degree of ventilation via 3.5 mm perforated holes.  Laths from 0.9 mm galvanised steel.  Manual or electric operation, with various control options depending on specification. Galvanised steel standard finish or powder coating. Recommended maximum width 10,000 mm.  Ideal for shop, bars and kiosks

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Armourguard Insulated Security Shutter Model F1

The Model F1 is a high quality insulated security shutter delivering the highest level of security and offering thermal protection. Composite of foam filled sections encased in a flat double skinned interlocking galvanised steel lath. Manual or electric operation to specification. Galvanised steel standard finish or powder coating available. Recommended maximum width 12,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

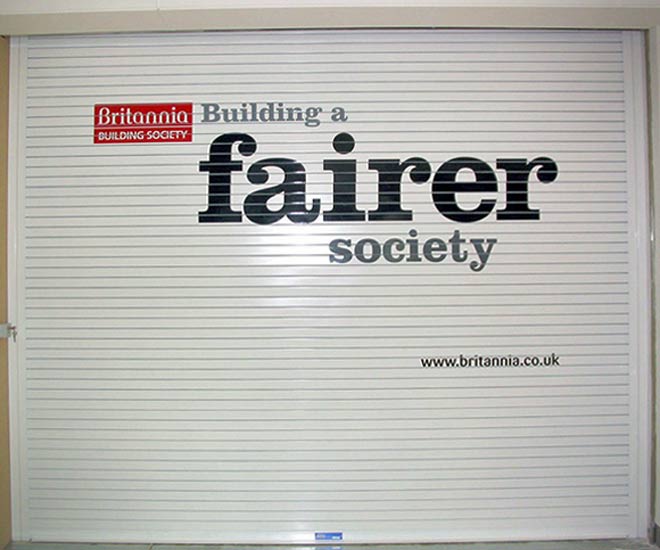

Armourguard Security Shutters Model F4

A flat surfaced 50 mm profile security roller shutter suited for areas with reduced overhead space.

A solid shutter door delivering a high level of security. Manual or electric operation to specification, with a variety of controls available upon request. Galvanised steel standard finish or powder coating available. Recommended maximum width 3,500 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

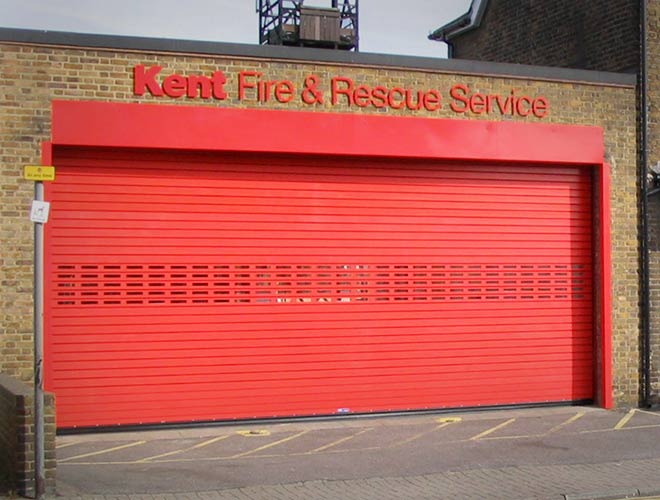

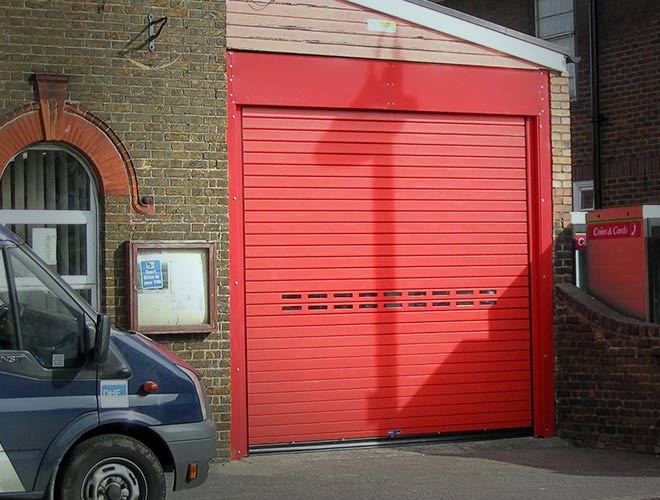

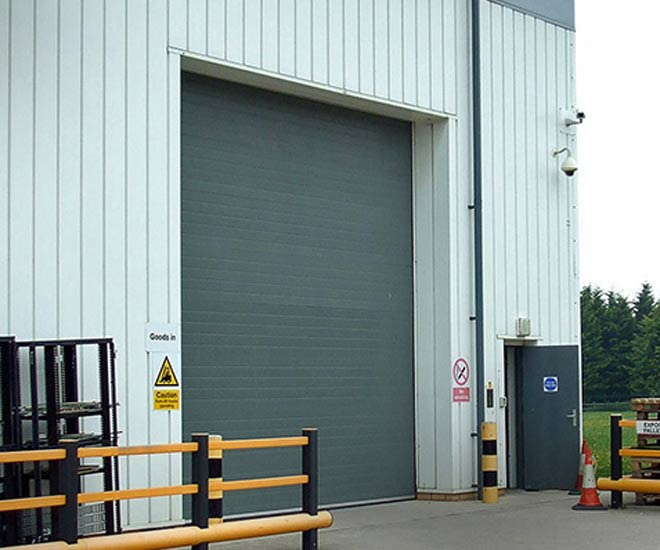

Armourguard Insulated Security Shutter Model F2

Designed for premises requiring insulated security roller shutter doors with maximum durability.

Delivering excellent insulation properties accompanied by a high quality plastisol finish. Double skinned, foam filled inter-locking galvanised steel sections aid temperature control. HP200 colour coating to BS EN 10147. Recommended maximum width 12,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Armourguard Through Vision Shutters Model N2S

The Model N2S security shutter provides a medium level of security with through vision and ventilation.

Available in ‘brick’ or ‘in line’ patterns. Punched apertures of 150 mm x 50 mm x 45 mm allow for 25% air flow. Galvanised steel standard finish or polyester powder coating. Recommended maximum width 8,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Armourguard High Ventilation Shutters Model N2M

Extremely well suited for areas requiring a high degree of ventilation and vision.

The Model N2M offers a good level of security and a full curtain will allow for 55% air flow. Choose ‘brick bond’ or ‘in line’ patterns. Galvanised steel standard finish or powder coating. Recommended maximum width 8,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Armourguard

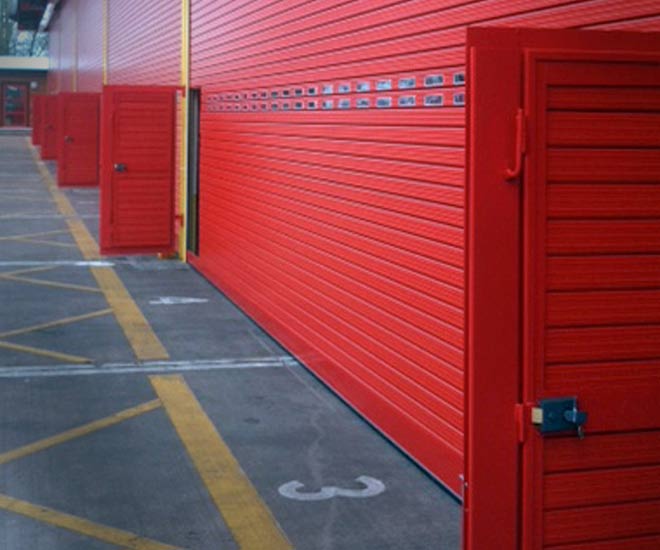

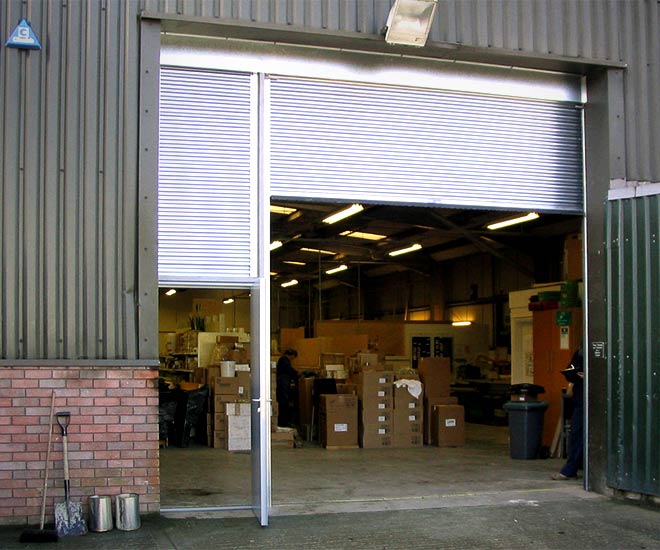

Integral Personnel Door

Available for integration with a number of our Armourguard doors.

An integral personnel door (also known as a wicket door) improves security and temperature control by allowing movement of foot traffic without raising the full roller shutter.



  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Frequently asked questions

It is highly recommended that you have security shutters serviced on an 12-month schedule (or a 6-month schedule for very high usage shutters). You should take particular regard to your obligations to protect your staff and visitors to your premises under Machinery Directive 2006/42/EV (or its replacement UK directive).

HAG can provide this scheduled maintenance for all door types across the UK.

For aesthetic and safety reasons, it is a common requirement for retail and public buildings to be fitted with security shutters that offer through vision. For single-skinned shutters, this can be offered via perforated holes in the steel laths. For double-skinned insulated shutters, through vision can be offered through toughened glazing options.

HAG offers a range of security shutters with through vision: Models P1, P2 and F2. Where high levels of vision and ventilation are required: Models N2S and N2M.

A doorset is a whole door system. It includes the door leaf, door frame, glazing, seals and intumescents, hinges, door furniture, finish, signage and door closer mechanism. It is defined by BS EN 12519 as “supplied complete with all essential parts from a single source”.

A doorset is designed and tested as one unit by the manufacturer. It is this doorset that is certified to the appropriate standards and issued with a certificate of conformance. Because a doorset is manufactured in a factory, it can be produced to tight tolerances under high quality assurance standards and rigorously tested prior to delivery to site.

In the door industry, the term ‘door’ is frequently used as shorthand for a ‘doorset’.



HAG offers a UK-wide 24 hour security shutter repair service.



To discuss your requirements with a member of the team, please use our contact form and we would be happy to help.
