Car park shutters, gates and barriers

Creating a safe environment where people are happy to park their vehicles is fundemental to car park security.

This range of seven specialist security gates, grilles and shutters for car parks is widely used across UK and internationally. Each offers suitable levels of security, easy and rapid to operation by car park users whilst providing reliability and low maintenance.

Suitable for private, commercial and public car parks.

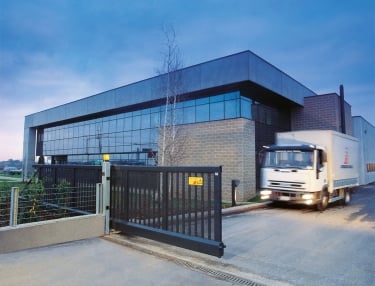

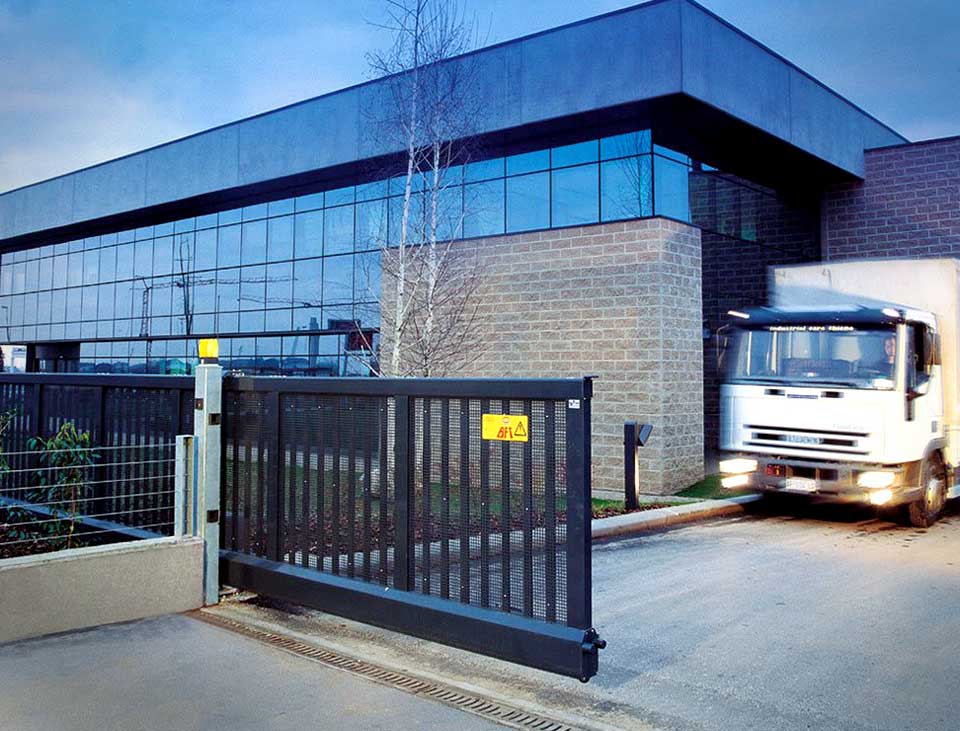

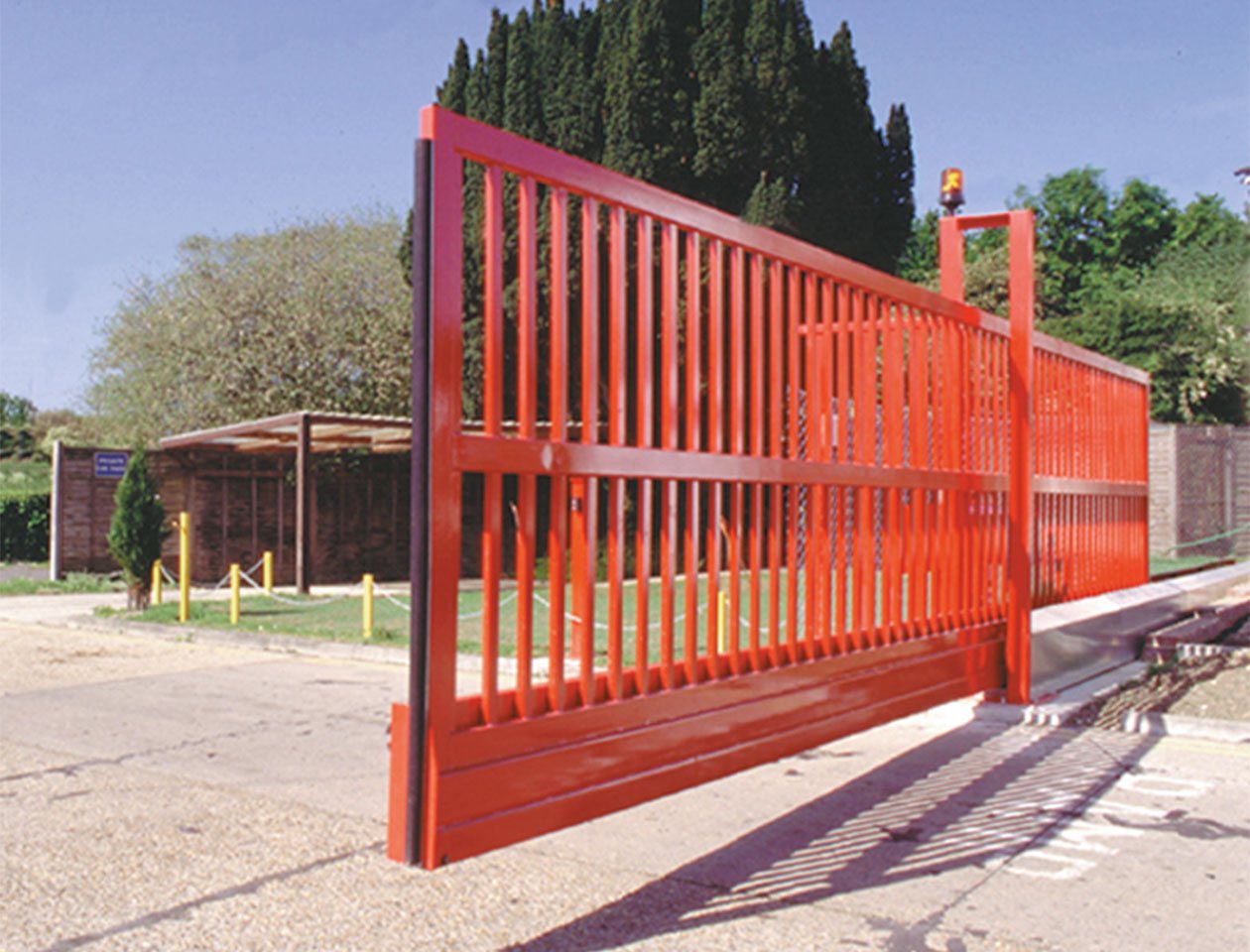

Cantilever Sliding Gates for Car Parks

Electrically-operated gate designed for external commercial use.  Cantilever sliding designs. Recommended max width 12,000 mm (single gate), 24,000 mm (bi-parting gates). Galvanised steel finish as standard with powder coating options available upon request. Choice of operation, including a card reader for added security.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Suitable for Air Flow Requirements

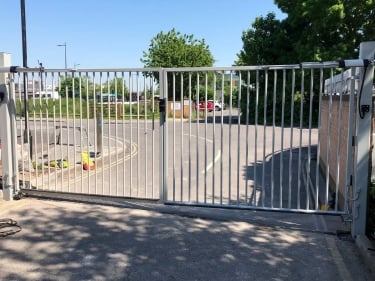

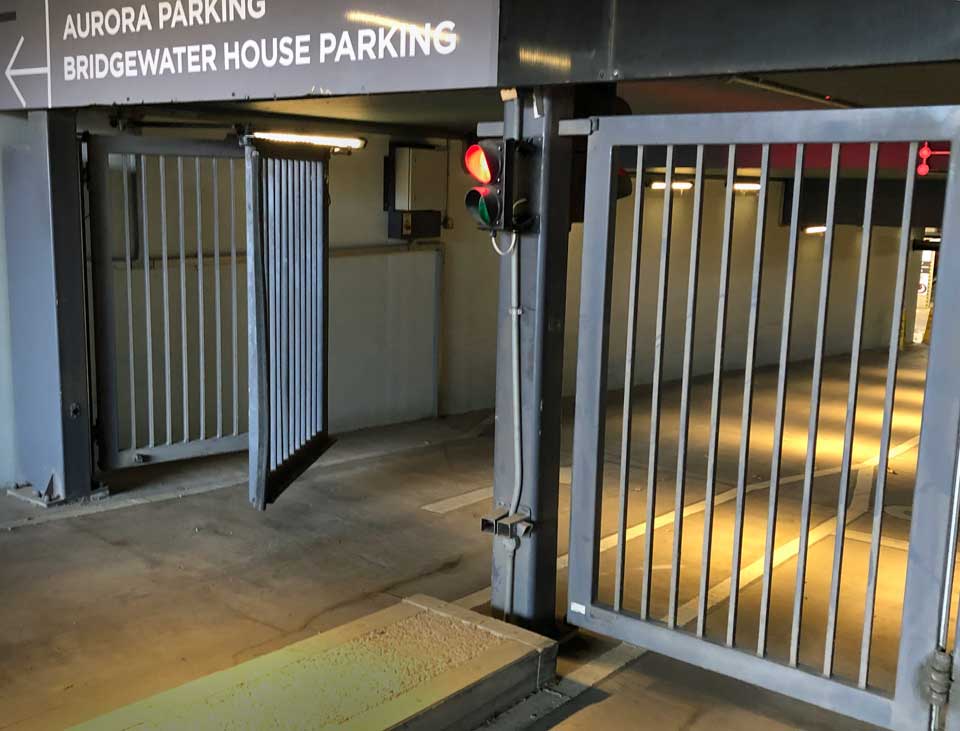

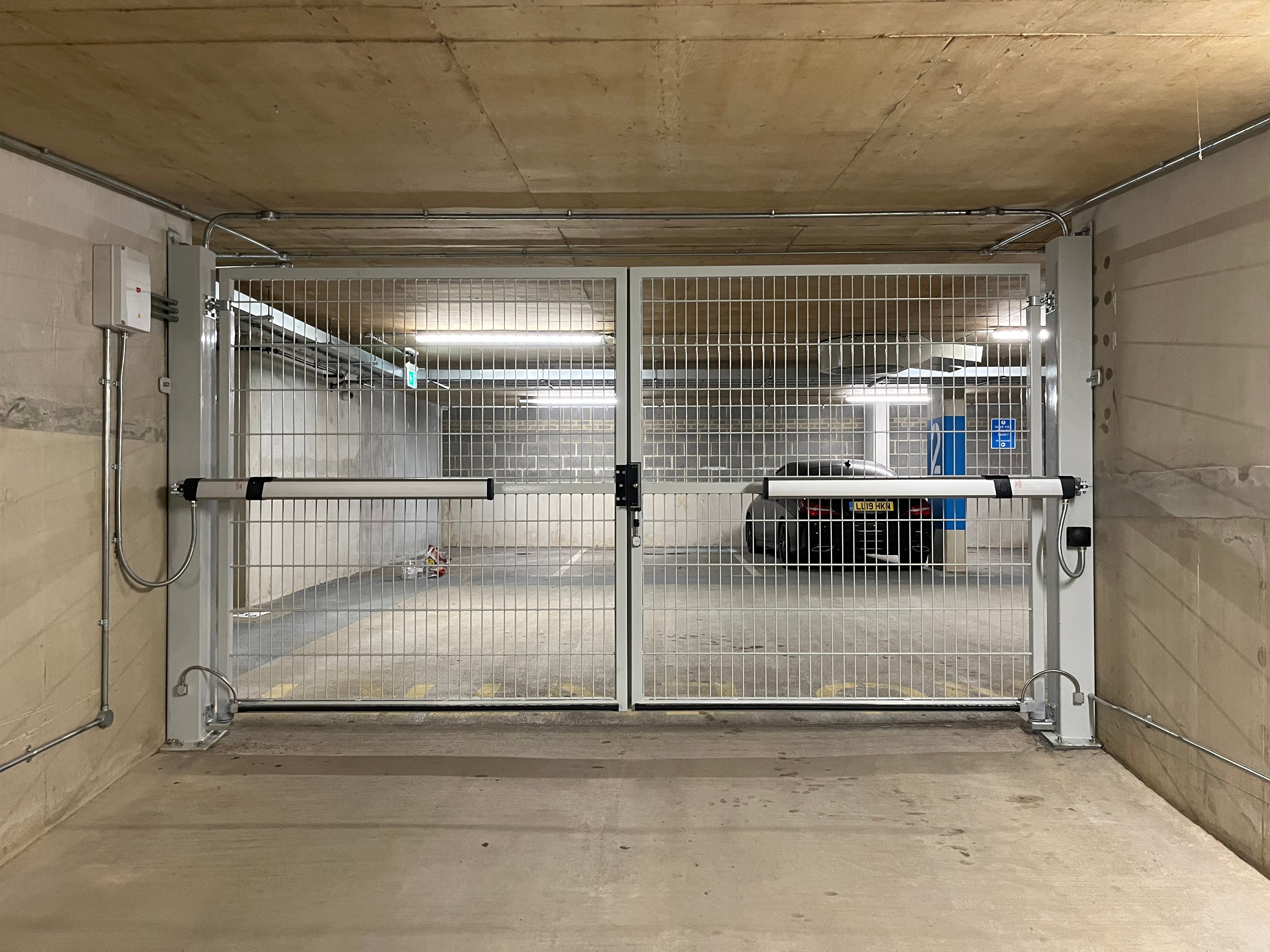

Car Park Swing Gates

Swing gates designed for external commercial use to provide reliable security. Recommended max width 8000 mm (4000 mm per leaf). Galvanised steel finish as standard with powder coating options available upon request.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage

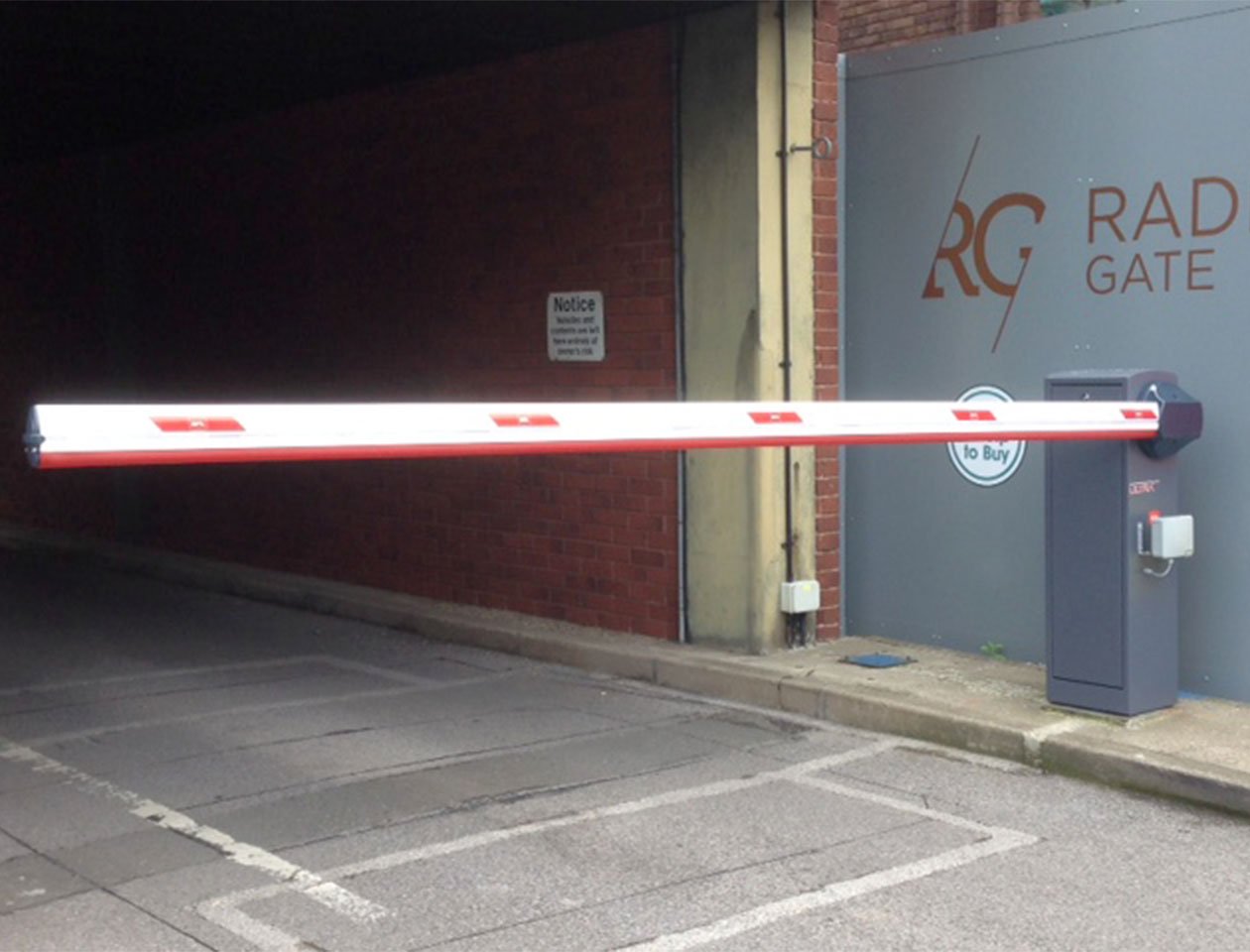

Car Park Access
& Rising Arm Barriers

Specifically designed to help control vehicular access to outdoor premises. Traffic Barriers are available in a variety of designs depending upon specification, all with integrated, anti-crush safety systems. Control access with card swipe or keypad entry available. Powder coating finishes available, warning markings on boom as standard. Recommended maximum width up to 7,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage

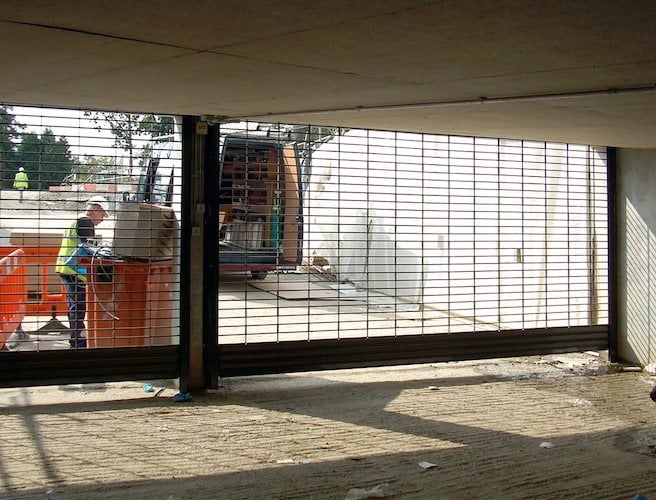

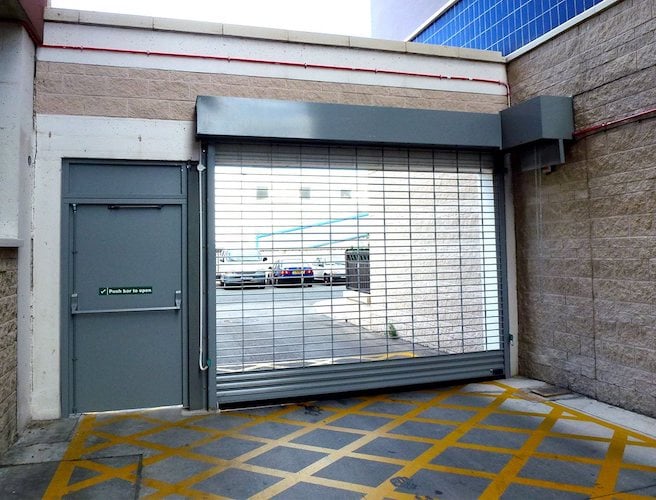

Car Park Shutter Grilles
ALULINK G1-HD

Providing a medium level of security, the apertures in the G1-HD roller shutter grille allows for through vision and ventilation. Manufactured from aluminium in a mill finish or choose from RAL or BS colours at additional cost. This roller grille is electrically operated with a choice of variety of controls. Recommended maximum width up to 6,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Through Vision
  • Star Rating
    Suitable for Air Flow Requirements

SR2 Insurance Roller Shutters
Certified to LPS 1175 Issue 7

Designed for car park’s that require SR2 insurance rated roller shutters. Manufactured in accordance with BS EN 12489 and BS EN 12426. With unique patented self-locking technology. Tested to 3 minute attack time from a range of tools including pliers, axe, crowbar and gas torch.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

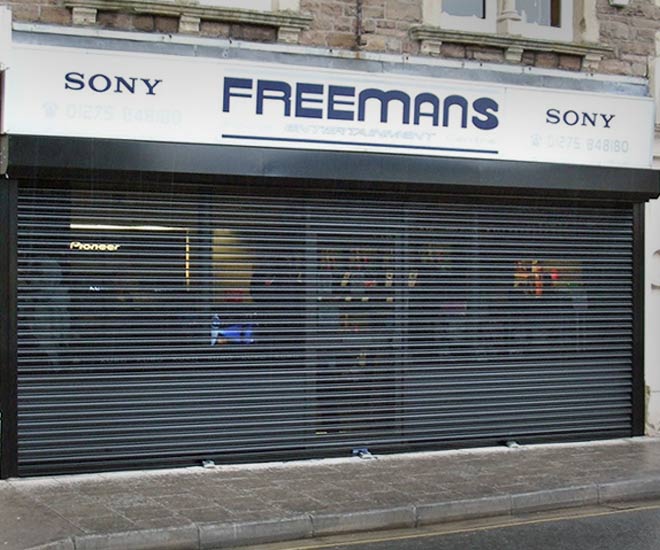

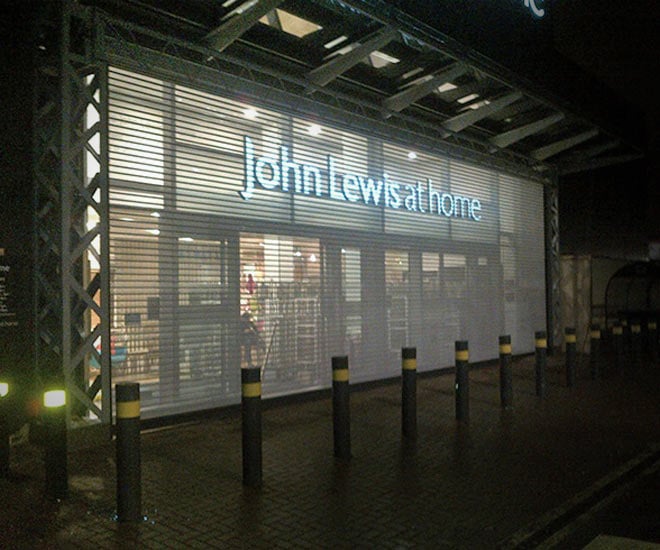

Car Park Through Vision Shutters Model P2

The Model P2 delivers a high level of security whilst providing 30% through vision and a degree of ventilation via 3.5 mm perforated holes.  Laths from 0.9 mm galvanised steel.  Manual or electric operation, with various control options depending on specification. Galvanised steel standard finish or powder coating.Recommended maximum width 10,000 mm.  Ideal for car parks.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

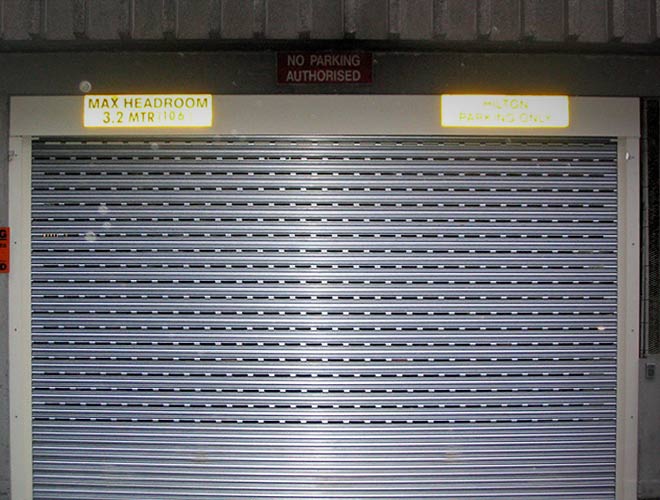

Car Park Through Vision Shutters Model N2S

The Model N2S security shutter provides a medium level of security with through vision and ventilation.

Available in ‘brick’ or ‘in line’patterns. Punched apertures of 150 mm x 50 mm x 45 mm allow for 25% air flow. Galvanised steel standard finish or polyester powder coating. Recommended maximum width 8,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

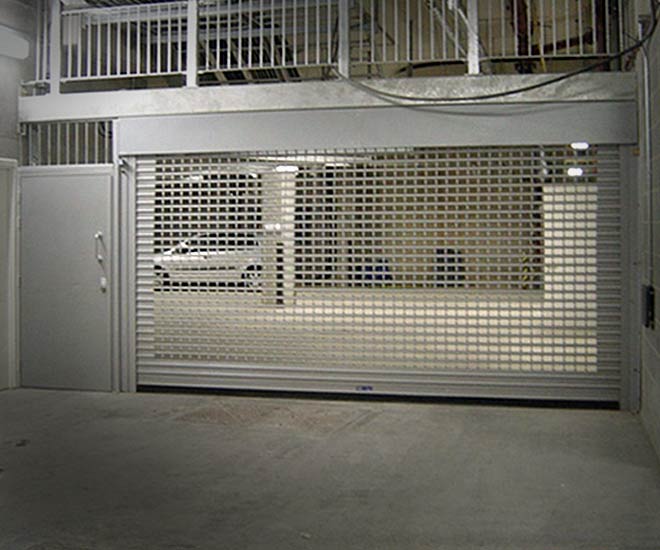

Car Park High Ventilation Shutters Model N2M

Extremely well suited for areas requiring a high degree of ventilation and vision.

The Model N2M offers a good level of security and a full curtain will allow for 55% air flow. Choose ‘brick bond’ or ‘in line’ patterns. Galvanised steel standard finish or powder. Recommended maximum width 8,000 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Through Vision

Guide to creating a car park as a safe environment

Security gates, grilles and shutters for car parks are a fundamental element in creating a safe environment where people are happy to park their vehicles.

When vehicles are left unattended, they are at risk of :

Whether developing a new car park, or looking to improve the security of your existing premises, it is essential that you consider how you’ll obtain a high level of security. Car parks with low levels of security will face a number of issues, including a rise in criminal activity and a reduction in use, which can be incredibly problematic for commercial enterprises.

Avoid the risk of security and safety issues by ensuring that your car park complies with Government legislation and follows best practice guidelines regarding security. Security can be approved by improving and installing the following.

Lighting

Ample lighting throughout your car park can help reduce the risk of crime. Preventing areas from being obscured by darkness or shadows limits the opportunity for criminal acts to be carried out and makes the general public feel safer using the space.

The cost of installing and running lighting can be reduced by painting interiors white. White walls will create a brighter space, which will help reduce annual energy costs and mean that less lights are required to illuminate the space.
Lighting also has an effect on the quality of CCTV footage, so developers should choose appropriate lighting that aids this.

Install CCTV

Clearly signposted CCTV can help keep your car park secure, as all users are aware they are being recorded. Footage can be used as evidence to prosecute and, if manned, can alert security of potential risks. Cameras should be installed to cover key areas of your car park, such as vehicle entry and exit points, and any priority areas, including:

Systems should use a DVR (Digital Recording System) to store images and CCTV equipment should be of a high enough standard to be able to distinguish number plates and allow for facial recognition. CCTV operators must comply with an increasing number of regulations as explained in this comprehensive guide by the ICO.

CCTV should be supported by ‘natural surveillance’ such as patrols by security personnel where possible.

Traffic barriers

Barriers can be used to control access to your carpark and the flow of traffic during busy periods. Traffic barriers installed at the entry and exit points can be integrated with ticket issuing or can be operated using access control systems, such as key pad entry or card swipes, for private access carparks.

Traffic barriers can provide the level of protection required during normal operating hours, but additional barriers may need to be installed when closed, or during off-peak hours.

Controlling flow through personnel entrances

It is equally as imperative that footfall traffic is properly controlled. Where appropriate, entrances and exits designed for foot traffic should include access control features to prevent unauthorised access. Using automatic doors with integrated security features allow for easy access routes that comply with The Equality Act 2010 while delivering a good level of security.

Roller shutters

Installing high security roller shutters (allowing suitable ventilation) to prevent access to your carpark offers maximum levels of security. Highly secure shutters installed externally can safeguard your carpark while it is closed. Alternatively, when controlled using keypad, fob, or card entry, shutters can be used to prevent unauthorised access in residential or business carparks.

Grilles and shutters can also be installed throughout the carpark to aid or restrict vehicle and foot traffic flow. Internally installed shutters can help create routes that mean all pedestrians or vehicles must pass a particular point, such as a CCTV camera, or a ticket machine.

Ventilation

Ventilation of car parks smoke clearance to remove toxic exhaust fumes including carbon monoxide. Shutters must allow for airflow. The build-up of toxic emissions in carparks can pose a health risk if airflow is restricted, so it is essential that your shutters are perforated so they are secure but don’t restrict air movement.These covered by Building Regulations Fire: Approved Document B and Ventilation: Approved Document F.

Safety

A 2019 national survey by the charity Gate Safe found that over 90% of commercial gates were been deemed unsafe because they did not meet the agreed safety protocols for an automated gate.

HAG is a proud members of a number of federations and trade associations, including the Door & Hardware Federation (DHF), Automatic Door Suppliers Association (ADSA), Safe Contractor and Construction Line. As such we are committed to providing a superior level of service and adhering to all associations’ codes of conduct.

Maintenance

Whilst there are ways for you to help maintenance, it is mandatory to have your doors inspected every 12 months. Due to the The Workplace Regulation 1992 Maintenance of Equipment, Devices and Systems, it is compulsory that all shutter windows and doors follow the correct procedures. It is advised that they are inspected at least once a year, not only to adhere to regulations, but for the safety of you and your property.

Our aftercare service includes a 24 hour nationwide repair and planned maintenance service, and 12 month warranty on all products as standard. Our network of skilled and reliable engineers operate throughout the UK to ensure your door and gate systems are continually working to maximum efficiency, to prolong their working life and reduce any potential unwanted costs.

Frequently Asked Questions

Commercial cantilever gates are manufactured up to heights of 4000 mm with available maxium widths of 12,000 mm width (single) and 24,000 mm (bi-parting).

The answer is yes but on most occasions they will require a new control panel. The new control panel will take the safety edges and device inputs. On the majority of gates it is more cost effective to replace the old automation for a new more up to date system which has integrated safety features and allows the input of additional safety features.

Yes, as long as they are installed correctly with the relevant safety features such as photocells, safety edges, safety ground loop and installed by qualified and experienced installation engineers.

The recommendation for commercial shutters, gates and barriers in a car park setting is that they should be serviced every 6 months.  Some high usage sites will require servicing every 3 months.


HAG manufactures, installs, and maintains traffic barriers and roller security shutters for residential, business, and commercial car parks. For more information about our products, or how they can help you create a secure car park, please get in touch with a member of our team by calling 0800 072 3444.
