Ali Glyde
Aluminium Sliding Security Shutters & Grilles

Ali Glyde
W80

Back

A manually operated sliding folding grille manufactured from aluminium. Its checker plate design allows for through visions without compromising security. A selection of finishes are available and Adams Rite mortice lock fitted as standard. Suitable for curved apertures. No maximum span. Recommended maximum height up to 4,500mm.

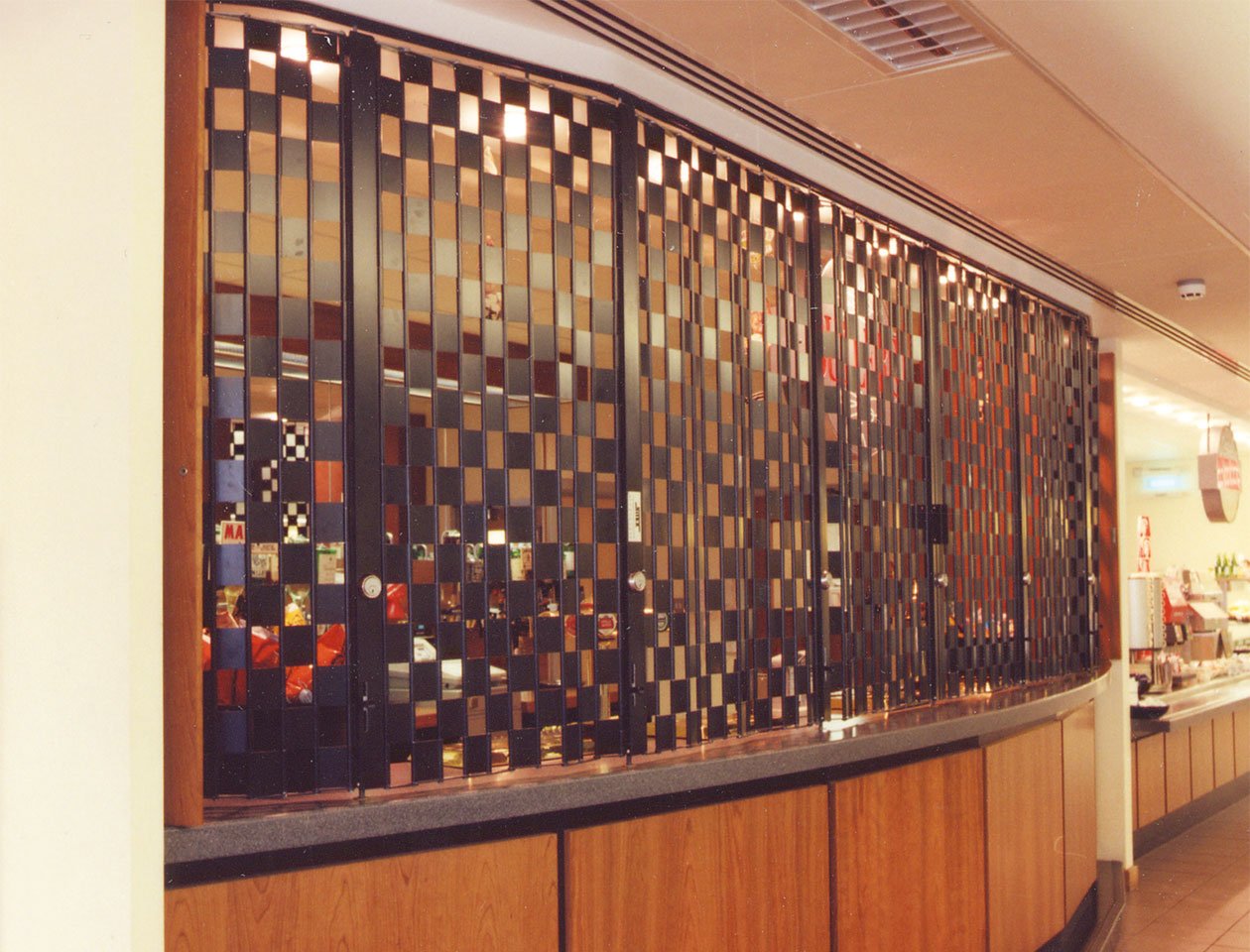

  • ali glyde sliding grille used at a food court

HOW WE RATE THIS DOOR

HOW THIS DOOR IS COMMONLY USED

Product Specification

Access NBS
Specification PDF
Talk to us

Product Overview

Description

The Ali Glyde W80 is a sliding folding grille in a checker plate design. It is a manual system, capable of spanning large lengths with curves.

Common use

Areas for the Ali Glyde W80 Grille to be installed are Airports, train stations and mall retail premises.

Dimensions

152mm vertical Sections with aluminium hinges

Weight

8kg Per M2

Finish

Standard Finishes Silver, White, Medium Bronze, light Bronze or Black.

Top Track

Aluminium 34mm x 42mm High No requirement for bottom track

Curved Apertures

This Product is highly flexible to provide limitless options for imaginative design lay outs to suit any shape or length.

Stacking Size

Approximately 15% of overall length.

Locking

Adams rite mortice lock with intermediate post’s incorporating drop bolts locating into flush floor sockets.

Operation

Manual Operation

Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
