Alulink Grille
G4

A brick bond style grille constructed from aluminium, delivering a medium level of security. Aluminium finish or RAL and BS powder coating colours depending on specification. Choose spring loaded of electrical operation depending on requirements. Recommended maximum width up to 3,500mm.

HOW WE RATE THIS DOOR

HOW THIS DOOR IS COMMONLY USED

Product
Specification

Product Overview

Description

Alulink Grille G4, Aluminium Brick Bond tube and link Grille.

alulink-g4-diagram

Common use

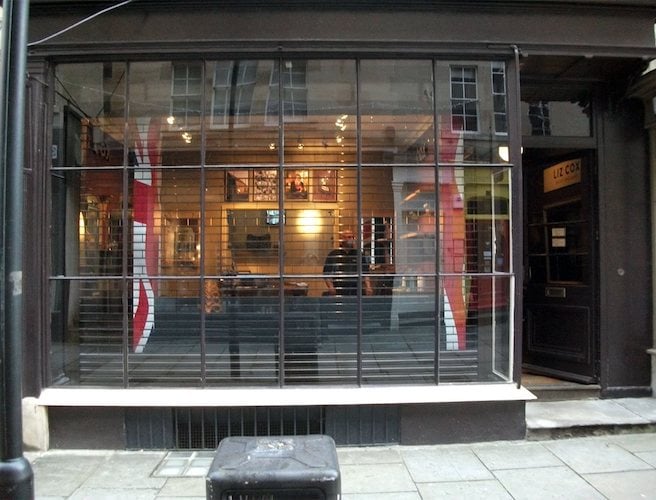

Kiosk, Bars & shop fronts where vision or ventilation is required.

Maximum Width

3500mm

Dimensions

180mm wide x 50mm high

Finish

Mill finished aluminium, polyester powder coat colours are available.

Shutter Box Specification

Construction

0.91mm bright spangle galvanised pressed steel coil casing available in various different designs to suit individual circumstances.

Box sizes

Overall height (top of box)
1300mm Box size 254mm
2000mm Box size 305mm

Finish

Galvanised steel, polyester powder coat colours are available.

Guide Rail Specification

Construction

Standard guide rails: 38mm x 29mm x 3mm – 67mm x 32mm x 3mm dependant on width. Electric shutters require a 50mm x 50mm steel box section (both sides) used to allow for motor unit and safety brake.

Finish

Mill finish aluminium, polyester powder coat colours and anodised finishes are available.

Operational Specification

Spring Loaded

A counter balanced spring ensures controlled raising and lowering with a key lock in-built at the bottom of the shutter for security.

Single Phase Electric

A tubular motor within the barrel assembly with limit switches and thermal cut out to prevent overheating. Draw 240 volts and 0.5 – 2.5 amps dependant upon the shutter size. Provision of a 13 amp fused spur is required for installation.

Override

A manual override is included to operate the shutter in the event of a power failure. This is usually only operable from only one side.

Control

Standard security key switch or rocker switch. Other controls are available on request. Please note when electric option is specified please confirm how you will lock shutter as this product does NOT self lock.

Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
