Product Specification
Product Overview
Description
The Armourguard Model C2 roller shutters are constructed from 76mm Curved, galvanised solid 22 gauge lath with HP200 plastisol colour coated finish to outside face and standard corrosion resistant finish to reverse side.
Common use

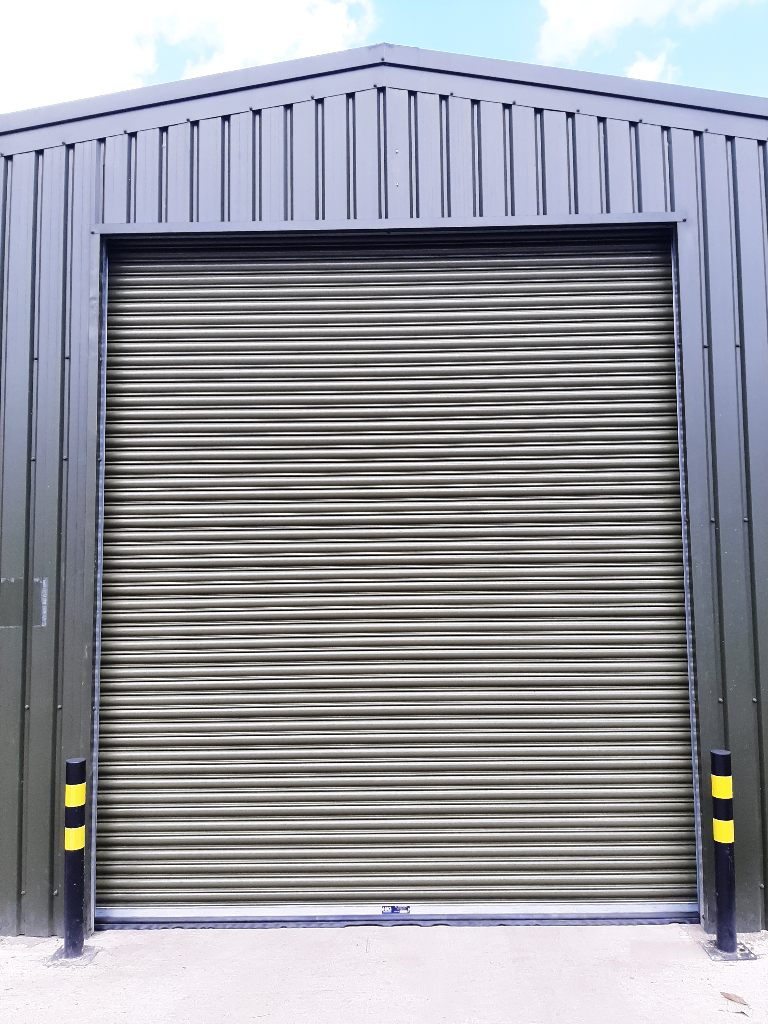

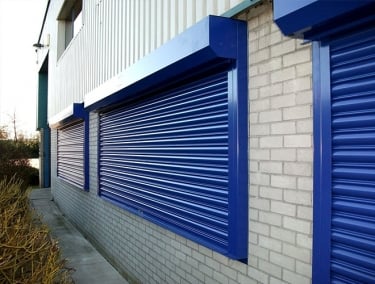

Range from shop front security shutters to industrial roller shutter doors
Maximum Width
10000mm
Dimensions
Normally 76mm x 0.71mm
Weight
9.34 kg per square metre
Finish
HP200 is British Steel’s roofing and cladding steel with a 2000 micrometre(nominal thickness) high-performance plastisol coating on a galvatite hot dip zinc coated substrate to BS EN 10146. The standard reverse side coating is a specially formulated two coat protective system of corrosion resistant primer topped with a heat cured high performance polyester. It is suitable for most internal environments.
Shutter Box Specification
Construction
0.91mm bright spangle galvanised pressed steel coil casing available in various different designs to suit individual circumstances.
Box sizes
Overall height (top of box)
Up to 2050mm box size
Up to 2800mm box size
Commercial Industrial
254mm 355 +
305mm 355 +
355mm 355 +
Please note industrial shutters have different size plates/boxes
On widths exceeding box sizes may move up one size due to deflection
Finish
Galvanised steel standard, polyester powder coat colours are available.
Guide Rail Specification
Construction
Standard guide rails: 38mm x 32mm x 3mm – 100mm x 32mm x 3mm dependant on width. Electric shutters require a 50mm x 50mm steel box section (both sides) used to allow for motor unit and safety brake. A 76mm x 50mm box section will be used for shutters over 160kg in weight (5000mm x 3200mm approximately).
Finish
Galvanised steel standard polyester powder coat colours are available.
Operational Specification
Spring Loaded
A counter balanced spring ensures controlled raising and lowering with a key lock in-built at the bottom of the shutter for security.
Single Phase Electric
A tubular motor within the barrel assembly with limit switches and thermal cut out to prevent overheating. Draw 240 volts and 0.5 – 2.5 amps dependant upon the shutter size. Provision of a 13 amp fused spur is required for installation
Three Phase Electric
Design of this model will alter for three phase operation. Electrical requirements are dependant on usage, further details on request.
Override
A manual override is included to operate the shutter in the event of a power failure. This is usually only Operable from only one side.
Hand Chain Operation (Industrial)
A counter balanced helical spring controlled via hand chain and chain lock to secure.
Control
Standard security key switch or rocker switch. Other controls are available on request.
Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
