Product Specification
Product compliance
- Tested to BS 8524
- BS EN 16034 compliant
- Fire Integrity (E) up to 180 minutes
- Irradiance (W) up to 30 minutes
- Self-closing
- Compliant to EN1634- 1.
- Compliant to EN1634- 3
- Full CE & UKCA compliance (conformity certificates on request)
- Complies to Document Part M Building Regulations 2004
Components included
Components included as standard: curtain, guides, bottom rail, box, battery backup, control unit, motor, and control box with batteries.
Choice of standard powder coat finishes to headbox, side guides, bottom bar.
Additional specification levels and optimisable components are available on request.
Arrangement

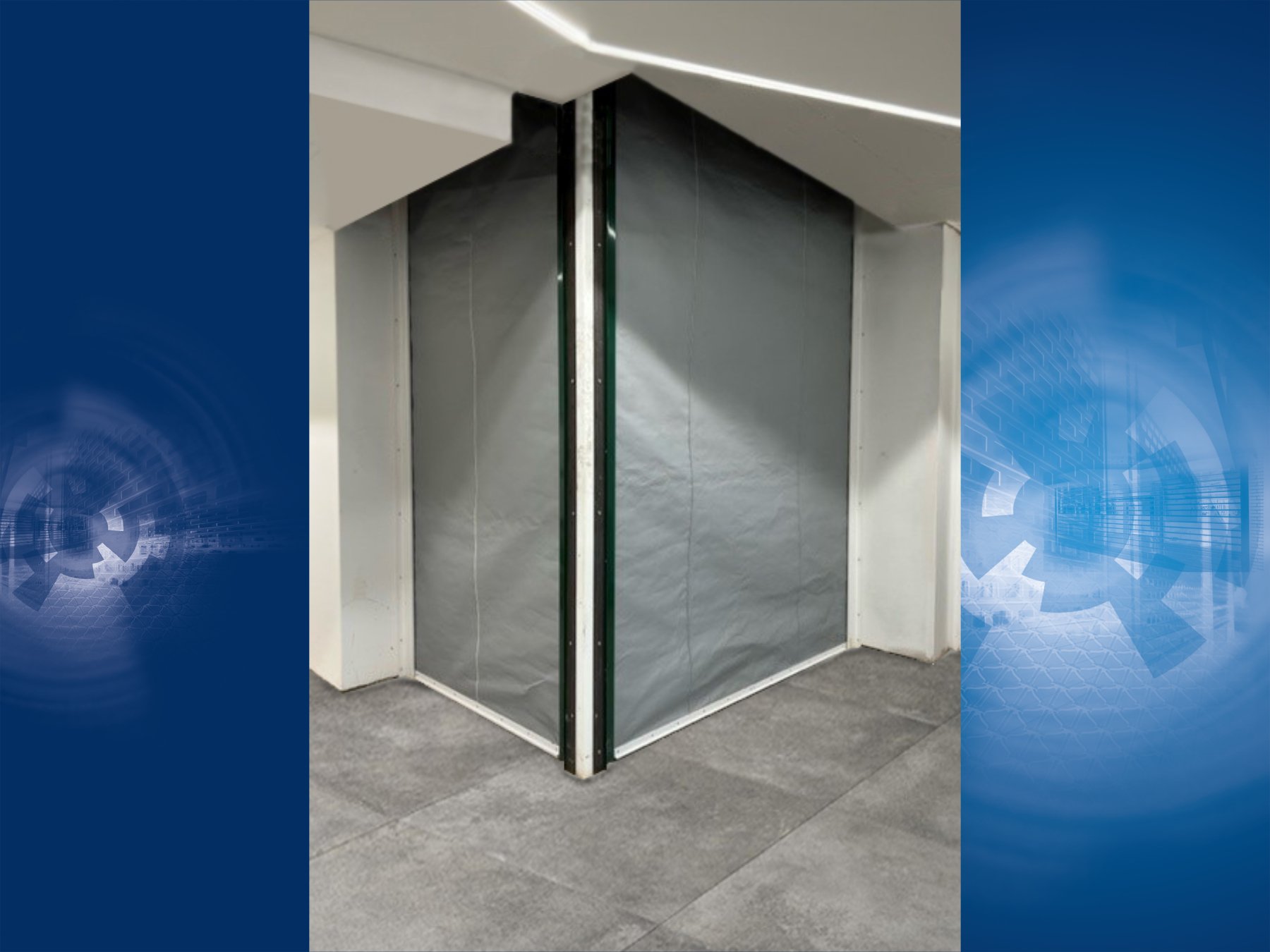

The Fireguard XR Plus smoke & fire curtain can be installed face or reveal fix to steel or masonry.
Curtain material
The fabric is manufactured from stainless steel, wire reinforced, woven glass fibre fabric. Coated on each side with silver polyurethane.
Metal tabs are sewn into the fabric to retain the fabric in the side guide.
Finish
These fire curtains are naturally silver grey or charcoal finish, depending on the specification.
Guide rails
The Fireguard XR Plus has two steel side guides of 100 mm x 50 mm. These are fixed to the structure using a c-channel. The overall profile is 130 mm x 57 mm.
Head plates
Two galvanised steel head plates hold the shaft with the rolled curtain. Sizing is dependent on the height of the application.
Up to 5 metres high, 210 mm x 240 mm.
Head box
The fire curtain assembly comprises a box housing at high level, in which sits the shaft, motor, and rolled curtain. The box is attached to channel section guides at each end.
Bottom rail
A galvanised steel ‘T’ bottom rail provides the weight needed for the curtain to self-close.
Operation
The system is held in the open position by a single-phase electric 24v DC motor. When a fire is detected, or power is lost, the motor will disengage and allow the gravity failsafe to activate.
Controls
The control panel is fitted with LEDs to indicate faults and operation. Batteries are also supplied for battery back-up.
Control options
Various options are available to ensure compliance, dependent on the site’s fire protection requirements:
– Audio/visual warning devices
– Emergency retract switches
– Beam sensors
Optional extras
Additional extras include:
– Split drop
– Delay on alarm
– Beam sensor
– Emergency retract switches
– Visual alert system
Installation
These smoke & fire-resisting curtains are suitable for internal applications.
HAG provides full installation, repair, and maintenance for the Fireguard XR Plus fire curtain nationwide.
Maintenance
Regular maintenance is required for all safety products by law. Maintenance contracts are available on request.
Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
