Product Specification
Product Overview
Description
The Seceuro CD 38 Built In roller shutters are constructed from a double skin extruded aluminium non-vented slat.
Common use

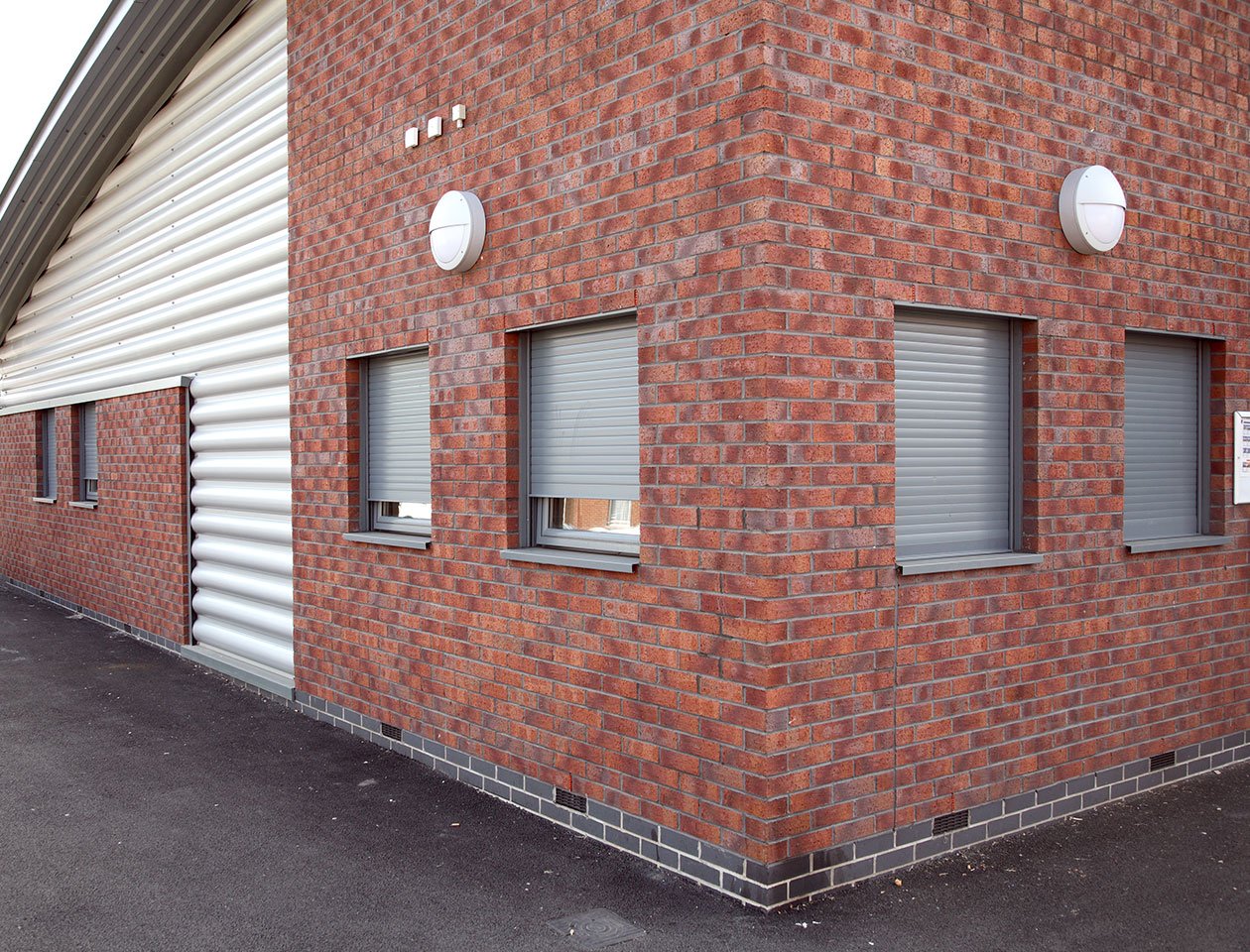

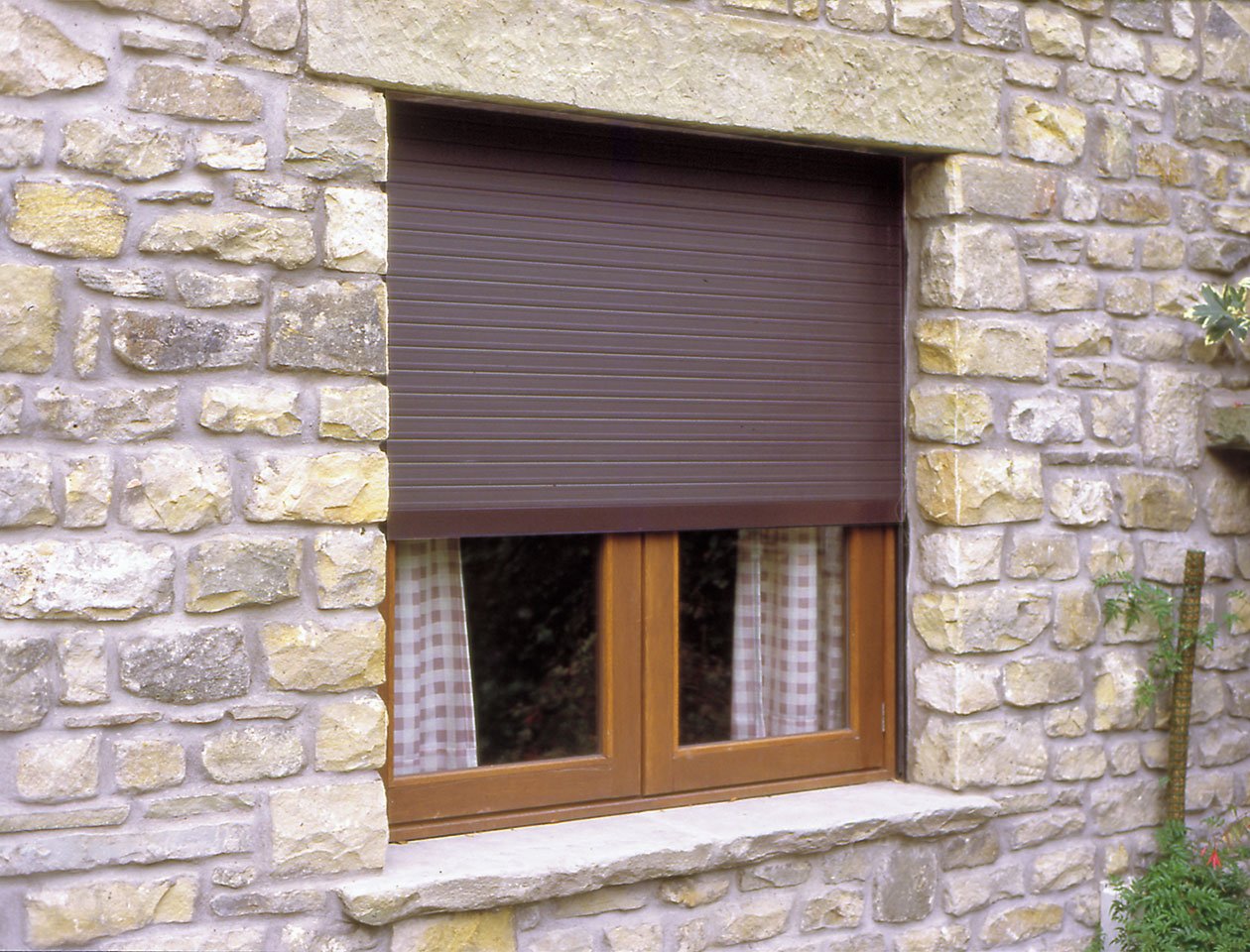

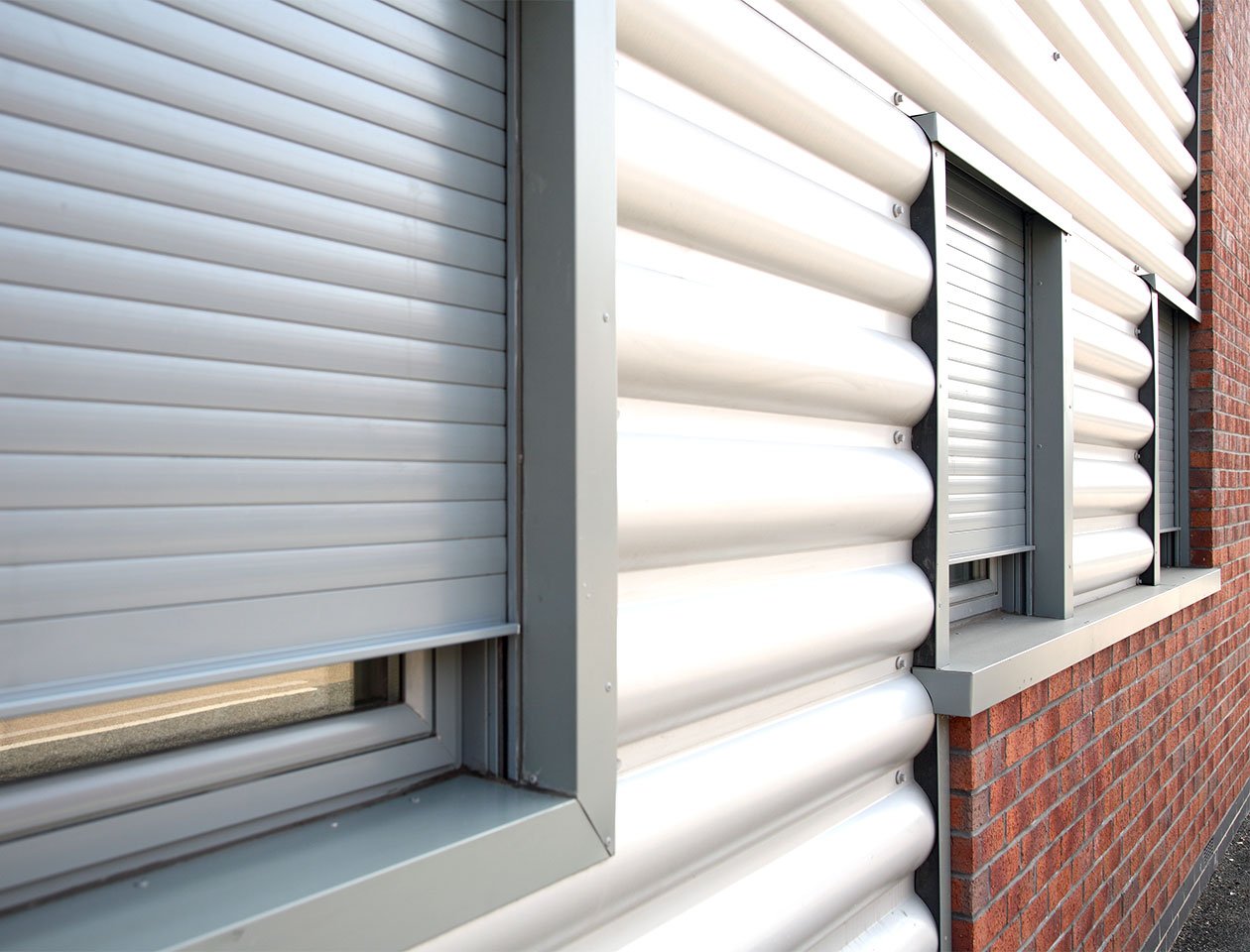

Security roller shutter for window and door applications on new build projects.
Maximum Width
3000mm
Dimensions
Nominally 38mm high x 9mm thick.
Weight
8kg per square metre.
Finish
White, brown or cream. bottom slat – white, dark brown.
Shutter Box Specification
Construction
Honeycomb section PVC. Removable vertical panel for installation and maintenance; tight clip getting to withstand draughts and moisture ingress. Drive mechanism mounted on metal inner plates for stability and easy access for maintenance.
Box sizes
Clear opening height (to underside of box):
1800mm, box size 200mm
2300mm, box size 225mm
3000mm, box size 295mm
Finish
White only
Guide Rail Specification
Construction
Ref – H34 Extruded aluminium with an integral box section for reinforcement and to facilitate fixing. High density 6mm pile brush seals for quiet and smooth operation. 60mm wide x 40mm deep. 3000mm, box size 295mm. White, dark brown. The CD38 slats and guide rails can be powder coated to alternative standard RAL or BS colours at extra cost.
Operational Specification
Rod Crank Operation
For shutters up to 25kg
Incorporates a geared rod crank handle 1500mm long which hangs vertically and secures into a clip when not in use. The gear is installed in the box, the gear ratio varies with shutter weight
Spring Loaded
A counter balanced spring ensures controlled raising and Lowering with a key lock in-built at the bottom of the shutter for Security.
Single Phase Electric
Provision of a 13 amp fused spur is required for installation. A tubular motor within the barrel assembly with limit switches and the thermal cut out to prevent overheating. Draw 240 volts and 0.5 – 2.5 amps dependant upon the shutter size
Control
Standard security keyswitch or rocker switch. Other controls are available on request.
Override
A Manual override should be priced and ordered separately for Shutters which are to be installed on exit doorways to permit Operation in the event of a power failure. This is usually only Operable from only one side.
Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
