Product Specification
Product Overview
Description

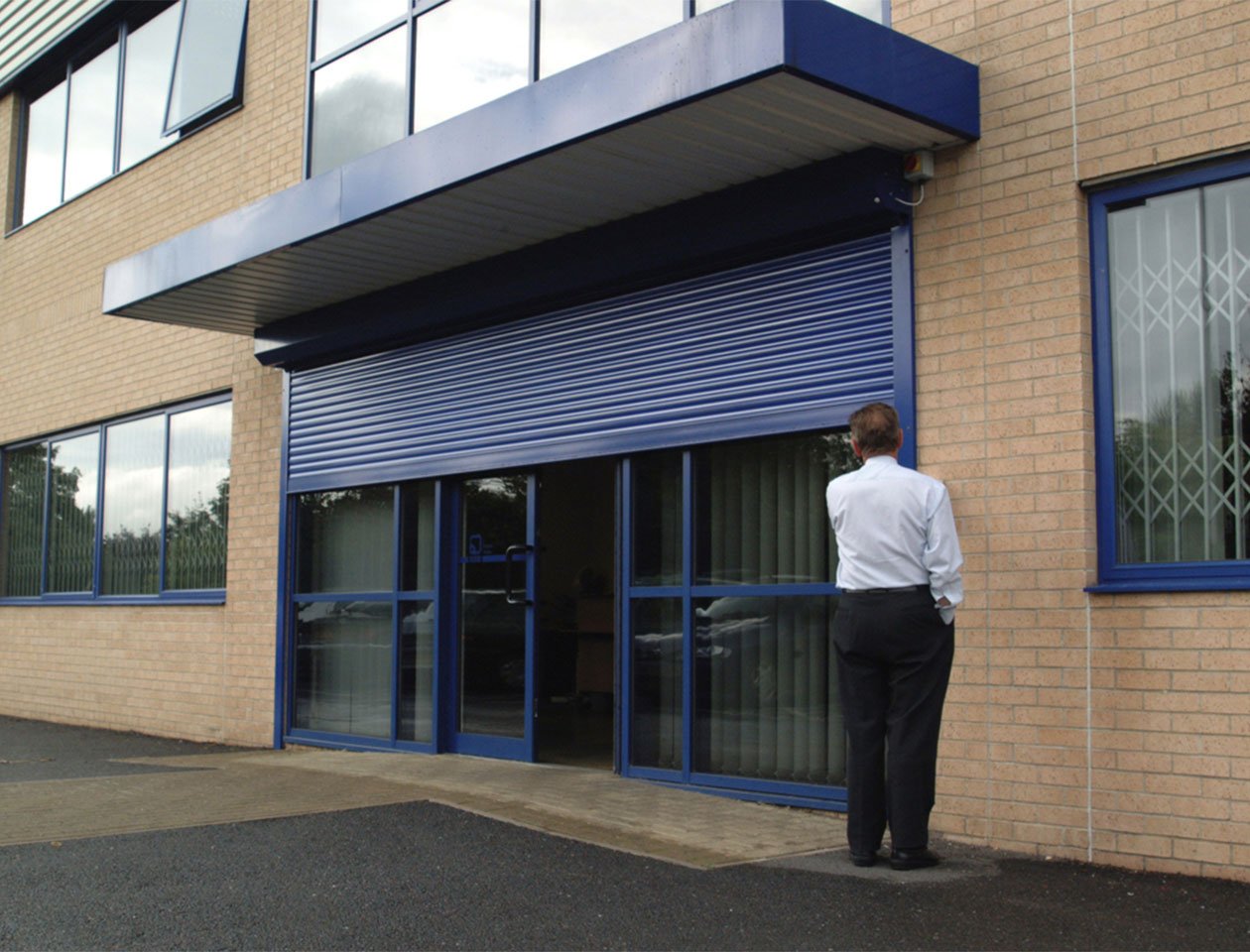

The Seceuro CD60 Built On roller shutters are constructed from a double skin extruded aluminium non-vented slat.
Common use
For commercial windows and Shopfronts roller shutter doors
Maximum Width
6000mm
Dimensions
Nominally 55mm high x 14mm thick.
Weight
9kg per square metre.
Finish
White, brown. Bottom slat – white, dark brown alternative standard RAL or BS colours at extra cost.
Shutter Box Specification
Construction
Roll formed aluminium in two sections; top and bottom boxes. Bottom box removable for installation and maintenance and chamfered at 45°. The shutter box is assembled on die-cast aluminium endplates.
Box sizes
Clear opening height (to underside of box):
1595mm, box size 205mm
2750mm, box size 250mm
2900mm, box size 300mm
Widths greater than 4000mm may require larger Headboxes, please check with us.
Finish
White, dark brown alternative standard RAL or BS colours at extra cost.
Guide Rail Specification
Construction
Standard guide rails: 60mm x 29mm x 3mm – 75mm x 29mm x 3mm dependant on width and height. Both with high-density pile 4mm brush seals.
Finish
White, dark brown alternative standard RAL or BS colours at extra cost.
Operational Specification
Spring Loaded
A counter balanced spring ensures controlled raising and Lowering with a key lock in-built at the bottom of the shutter for Security.
Single Phase Electric
Provision of a 13 amp fused spur is required for installation. A tubular motor within the barrel assembly with limit switches and the thermal cut out to prevent overheating. Draw 240 volts and 0.5 – 2.5 amps dependant upon the shutter size
Control
Standard security keyswitch or rocker switch. Other controls are available on request.
Override
A Manual override should be priced and ordered separately for Shutters which are to be installed on exit doorways to permit Operation in the event of a power failure. This is usually only Operable from only one side.
Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
