Product Specification
Product Overview
Description
The Seceuro CD900 Built On roller shutter is an open grille constructed of extruded aluminium bars and links.
Common use

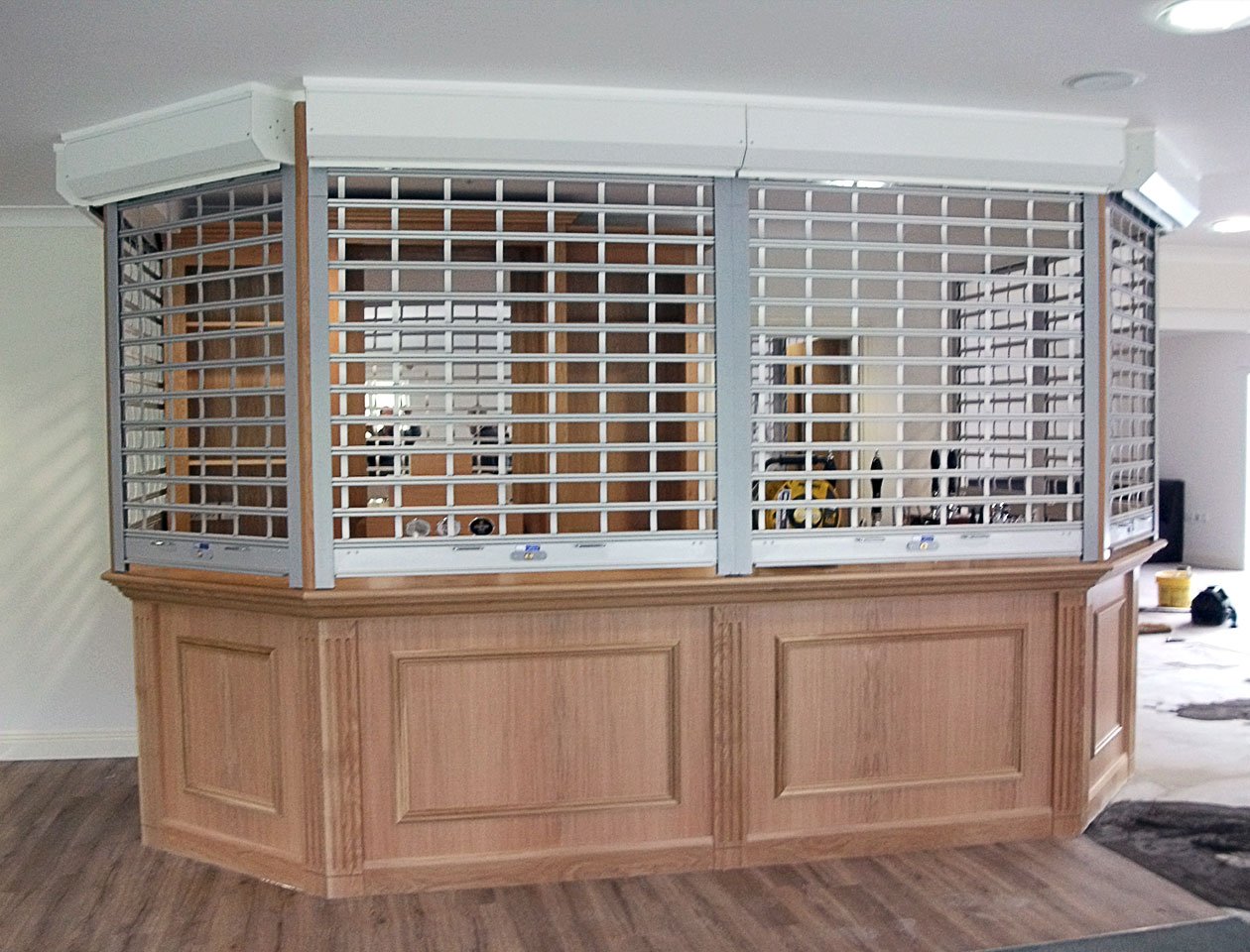

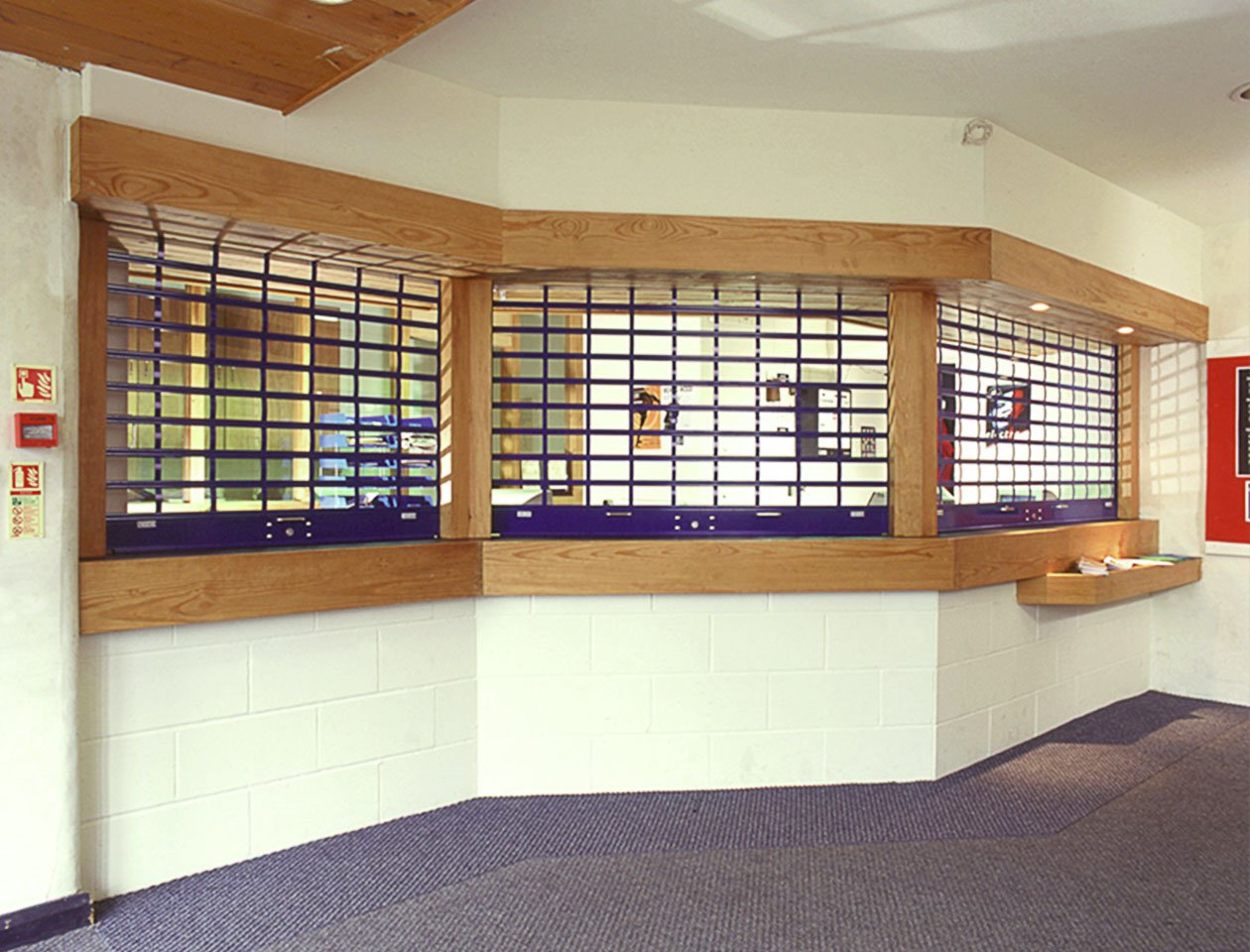

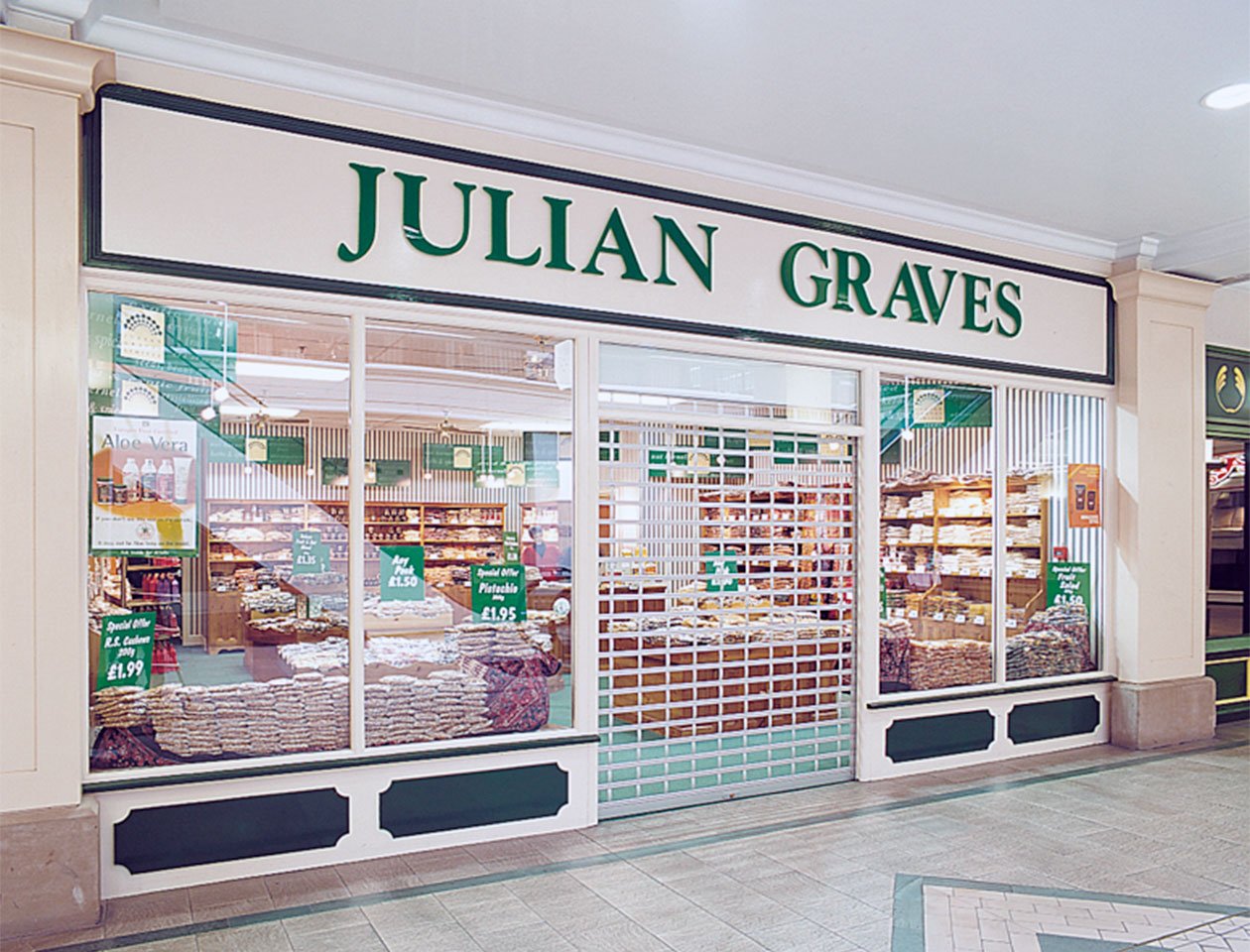

Internal shopfronts, kiosks, bars and serveries Where vision is required though a roller shutter.
Maximum Width
5000mm
Dimensions
150mm x 70mm Apertures.
Weight
150mm x 70mm spacing 7kg per square metre
75mm x 70mm spacing 8kg per square metre
75 x 70mm spacing 8kg per square metre
Finish
Satin silver anodised as standard. Powder coated to standard RAL or BS colours at an extra cost. Regular or brick bond pattern. Solid slats can be included at extra cost for visual effect or extra strength. Certain logos and designs can be incorporated in the construction of the grille
Shutter Box Specification
Construction

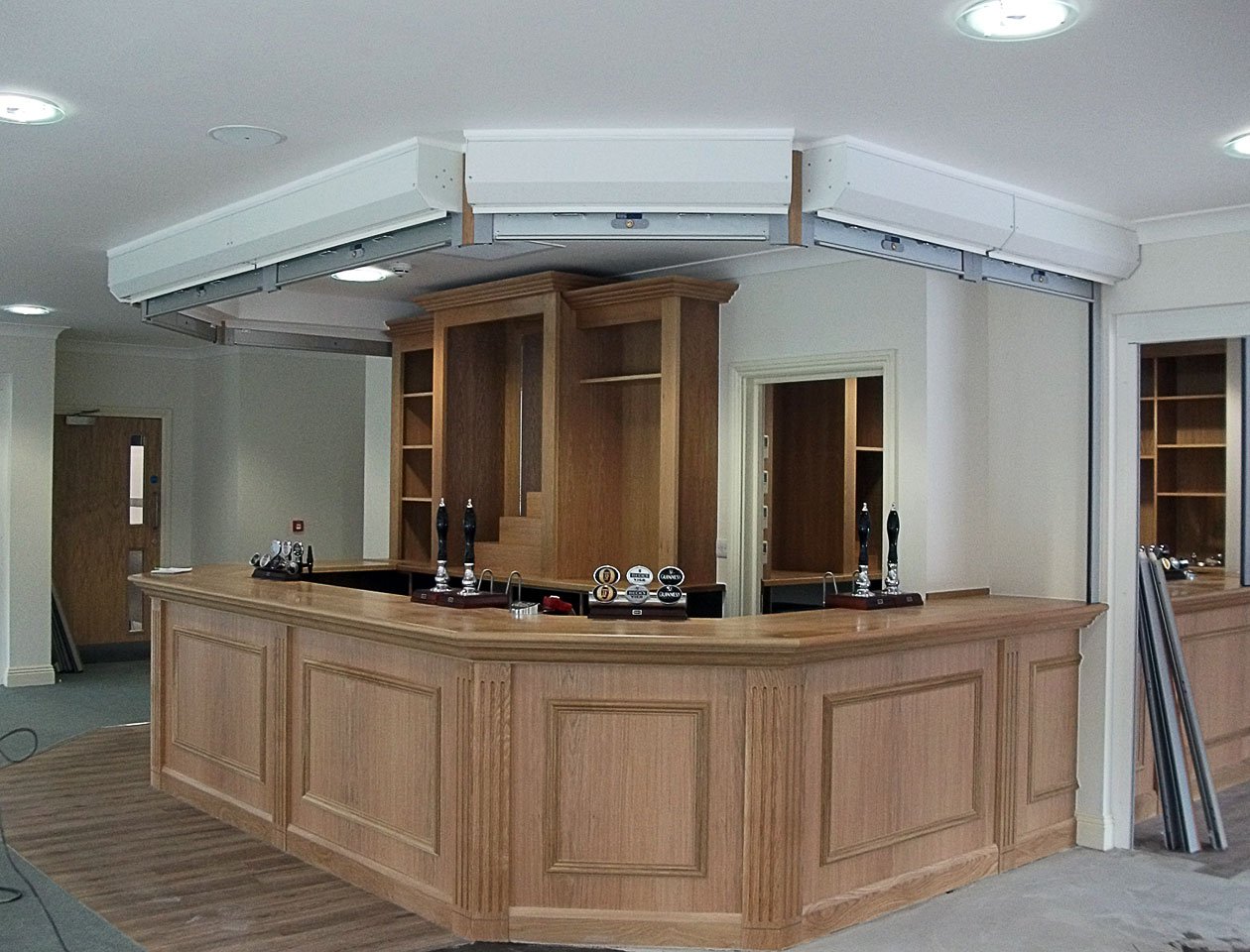

Roll formed aluminium in two sections; top and bottom boxes. Bottom box removable for installation and maintenance and Chamfered at 45°. The shutter box is assembled on die cast aluminium endplates.
Box sizes
Clear opening height (to underside of box):
1400mm, box size 205mm
2550mm, box size 250mm
3700mm, box size 300mm
Finish
White, dark brown, Alternative standard RAL or BS colours at an extra cost.
Guide Rail Specification
Construction
60mm x 29mm x 3mm – 90mm x 34mm x 3mm dependant on width and height. Both with high-density 4mm – 7mm pile brush seals.
Finish
White, dark brown, Alternative standard RAL or BS colours at an extra cost.
Operational Specification
Spring Loaded
A counter balanced spring ensures controlled raising and Lowering with a key lock in-built at the bottom of the shutter for Security.
Single Phase Electric
Provision of a 13 amp fused spur is required for installation. A tubular motor within the barrel assembly with limit switches and the thermal cut out to prevent overheating. Draw 240 volts and 0.5 – 2.5 amps dependant upon the shutter size
Control
Standard security keyswitch or rocker switch. Other controls are available on request.
Override
A Manual override should be priced and ordered separately for Shutters which are to be installed on exit doorways to permit Operation in the event of a power failure. This is usually only Operable from only one side.
Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
