Dock Plus HDS 9000
Swing Dock Leveller

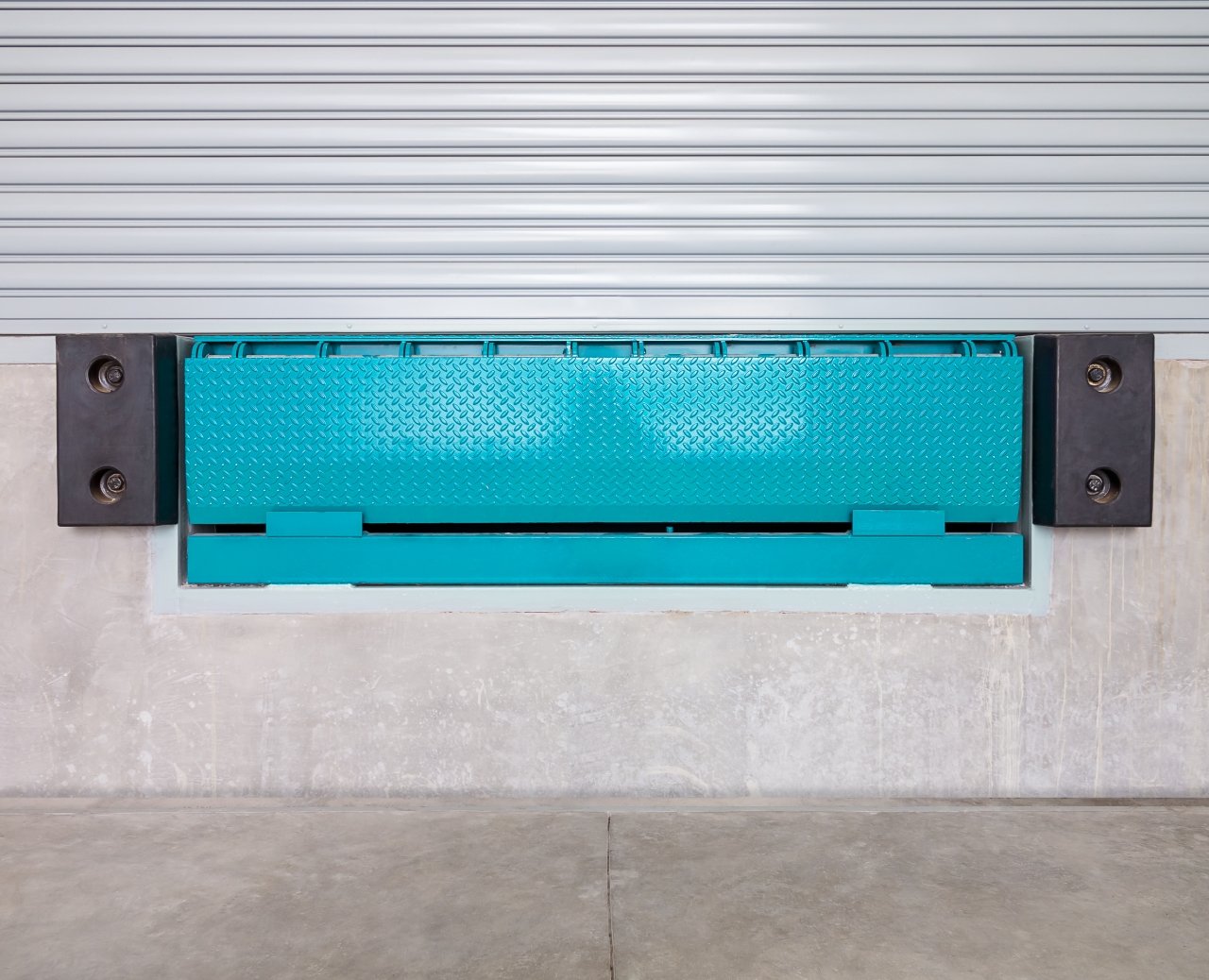

The Dock Plus HDS 9000 is a bespoke manufactured swing lid dock leveller compliant with European regulations BSEN1398. This dock leveller can be installed on new or retrofitted to existing loading bays. With three variations – free-standing, concrete encased or suspended frame – they provide a reliable and versatile dock levelling solution.

HOW WE RATE THIS DOOR

HOW THIS DOOR IS COMMONLY USED

Product
Specification

Product Overview

Product description

The Dock Plus HDS 9000 Swing dock leveller is hydraulically powered vertically up to a 45 degree angle, then extends its safety lip plate horizontally before securing to the vehicle with a downward motion. This bridges the gap between loading bay edge and vehicle.

Common Uses

Loading Bay, Distribution Centers, Industrial Units, Hospitals, Retail Units.

Maximum Sizes:

6000kg to 9000kg capacity.

Construction

The deck is manufactured from 6mm to 8mm chequer plate dependent on overall size of the dock leveller.

The safety lip is manufactured from 12.5mm chequer plate with either ten self-clean hinge units or piano style hinge assembly.

The base frame is manufactured from mild steel sections.



Operation

Dependent on the dock level size, the motor unit rating will be between 0.75 and 1.1kw and will require 415v 3 phase and earth. The IP55 control unit is wall mounted with a transformer at 24volts. A Hydraulic hose break cartridge is used for smooth operation.

Safety

Integral safety prop, integral toe guards and hazard marking to side edges.

A variance of 100mm is allowed for uneven trailer centres.

Finish

Galvanised steel as standard, polyester powder coat available on request.

Product specification may change and it is advisable to consult with HAG technical advisors before specifying or ordering. HAG operates a policy of continuous improvement.
