HAG’s fire protection doors and shutters offer an exceptionally high standard of specification, performance and protection for your premises. Specifically designed fire shutters, fire doors, smoke curtains and fire curtains provide optimum protection for premises and occupants during an outbreak of fire. Suited for all establishments, including high risk areas such as kitchens. Products offer fire protection ranging from 1-4 hours and can be seamlessly integrated into existing fire and security alarm systems.
Government Legislation changed 1st November 2019.
All new fire shutters must be:
Fire tested and compliant to latest standard BS EN 16034:2014 & CE Marked to BS EN 13241-1:2003
Products Tested to 2008 Certification will be prohibited by law!
Offering the ability to be installed in areas where traditional fire shutters are not possible. Delivering a fire protection barrier for 1-4 hours depending on model, while providing a high level of security. Tested to BS EN 1634-1 compliant BS EN 16034:2014. Galvanised steel finish with powder coating available at additional cost. Recommended maximum width up to 7,000mm for this fire shutter.

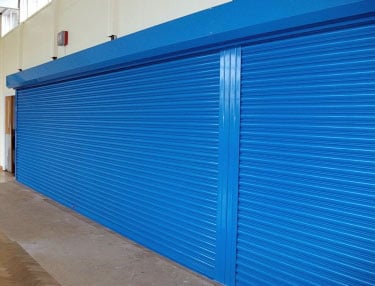

Operating automatically during an emergency, the Fireguard range of fire shutters also provides a high level of security. Offering capabilities of 60, 120, and 240 minutes of fire protection, depending on specification. Tested to BS EN 1634-1 & compliant BS EN 16034:2014. Galvanised steel finish with powder coating available at additional cost. Recommended maximum width up to 12,000mm.

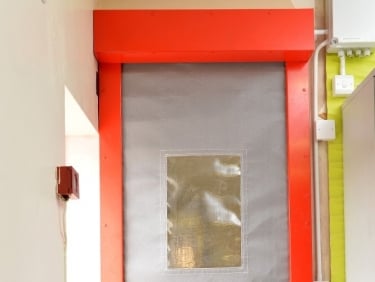

The Fireguard HF60 Fire Curtain delivers 60 minute fire protection. The system’s built-in self-closing mechanism links to the building’s emergency fire protection systems. Its specially coated glass fibre curtain prevents the spread of fire and protects main escape routes. Single curtains up to 5000mm (W) and 6000mm (H), or overlap multiple curtains to achieve widths up to 20m. CERTIFIRE approved.
The Fireguard HF240 Fire Curtain is a premium fire resisting curtain giving 240 minute fire protection with the added benefit of 30 minutes irradiance shield. Tested and compliant to the latest European standards BS EN 16034. This adaptable fire curtain can be installed in suspended or solid ceilings. Widths up to 20 metres wide can be obtained by overlapping curtains. CERTIFIRE approved.
The Fireguard HFS Plus Smoke and Fire Curtain provides optimum levels of smoke and fire protection with added irradiance shield. This protection system is designed to provide safe evacuation routes in proximity to the fire curtain and protection for close contact. It comes complete with smoke seals as standard to provide 120 minutes of smoke & fire protection. CERTIFIRE approved.
The Fireguard HS120 Smoke Curtain protects against the spread of smoke for up to 2 hours, and is tested up to 600˚C. Highly adaptable, this smoke protection system can be specified as fixed or automated to protect escape routes. The Smoke Curtain can be manufactured with no maximum width, and can be installed discreetly for low headroom requirements. CERTIFIRE approved.
The Fireguard FD01 is a pedestrian Fire Resisting Steel Doorset that prevents the spread of fire whilst providing high security. Bespoke manufactured, it can be specified with a range of fire Integrity (E) from 60 to 240 minutes. Fully optimisable with factory fitted range of vision panels, hardware, finishes and ironmongery. Compliant to fire regulations BS 476 Part 20 & 22, BS EN 1634 and CERTIFIRE.
The Fireguard FD05 Glass Doorset is a glass fire resistant door system tested to BS EN 1634-1. Our glazed Fire Doors can be specified as doorsets or automatic sliding doors for main passageways and entrances used in fire evacuation routes. Acoustic reduction up to 55dB, ballistic resistant to BS EN 1522 & FB3NS to FB7NS, and intruder resistant to BS EN 1627 RC2 to RC5.
All of our fire doors, fire shutters, smoke curtains and fire curtains come with a specified resistance level. Fire resistance level is the ability of the system to withstand fire under test conditions for a certain period of time. Their effectiveness is rated on a scale of 60, 120, or 240-minute fire rating, which represents the time it can prevent major damage to buildings.
When specifying a bespoke fire door, fire shutter, smoke curtain or fire curtain, you will also have to consider the following:
• Width & height of opening
• Frequency of use
• Features of operation
• Head room requirements
• Connection to the existing fire system
To discuss your requirements with a member of the team, please use our contact form and we would be happy to help.
