Steel Doors & Steel Doorsets

The steel door range includes personnel doors, fire and emergency exit doors, fire resistant doors, security doors and communal entrance doors.  Specialist products include louvered, acoustic sound proofing and blast resistant steel doors.  Doorset available as single and double leaf options with matching frames.

Internal and exterior designs with specifiable options such as vents, panic bars, access control, thermal insulation and electric/manual operation. Powder coating finshes available in a wide range of colours.

Selected doors in the steel door range have been tested to BS476 Part 20 & 22, BS EN 1634 for fire safety.

Suitable for industrial, commerical and public sector.

Armourdoor AD05
General Purpose Steel Door

A versatile general purpose steel door offering a medium level of security. Manufactured from Magnelis steel sheets, with a choice of infill and finishes, including powder coating. Choose from a manual or electrical operation. Available in single or double leaf openings to a maximum height of 2900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Thermal Protection

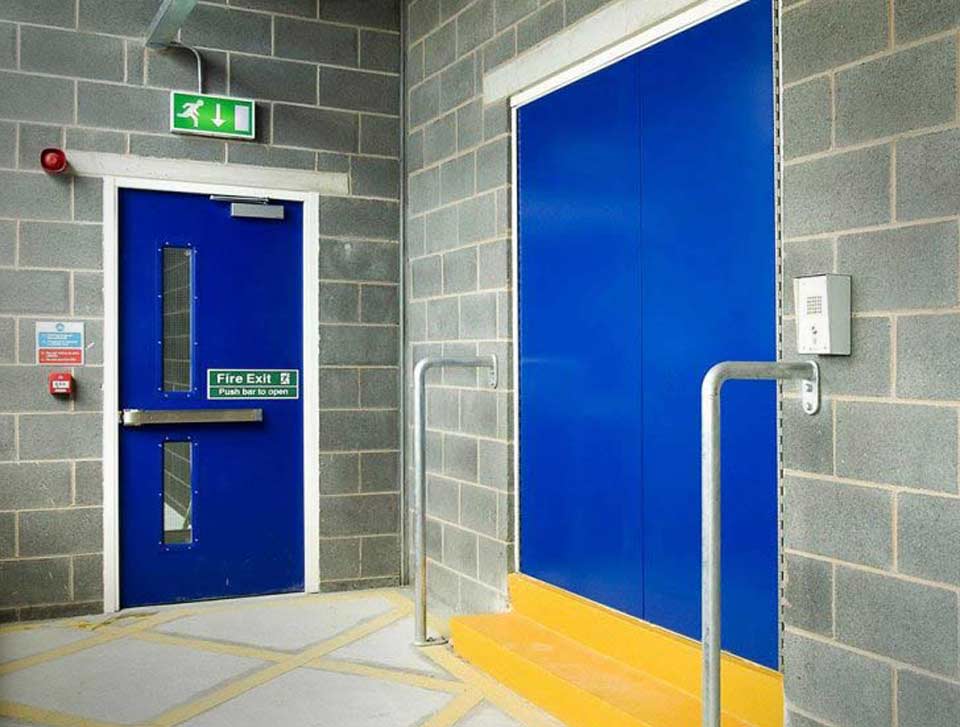

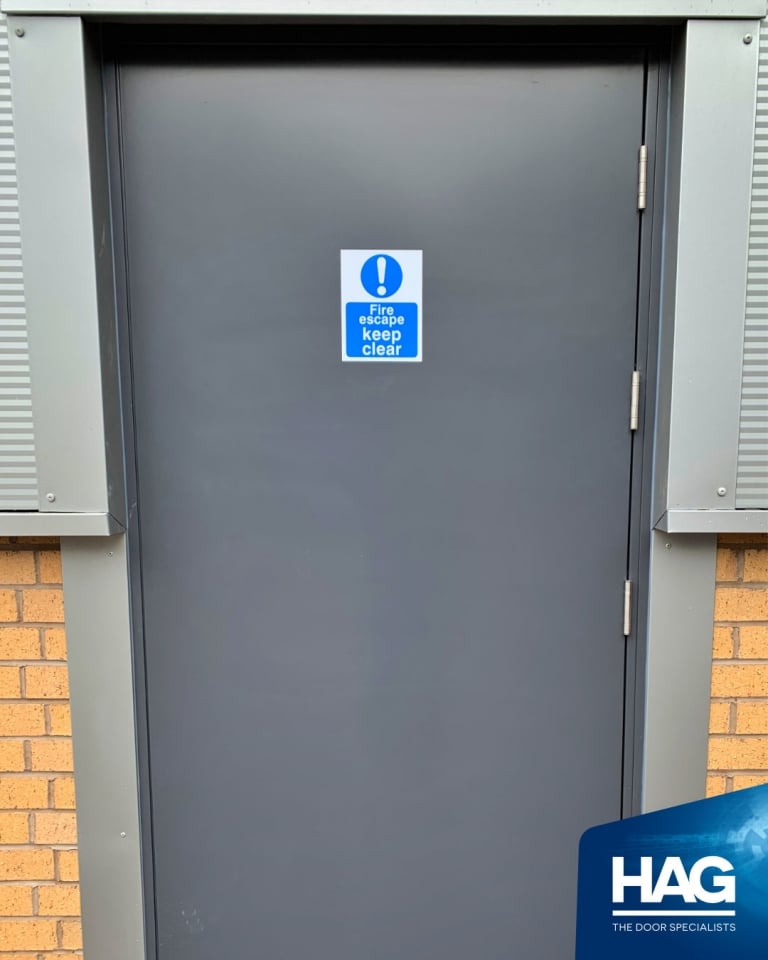

Armourdoor AD10

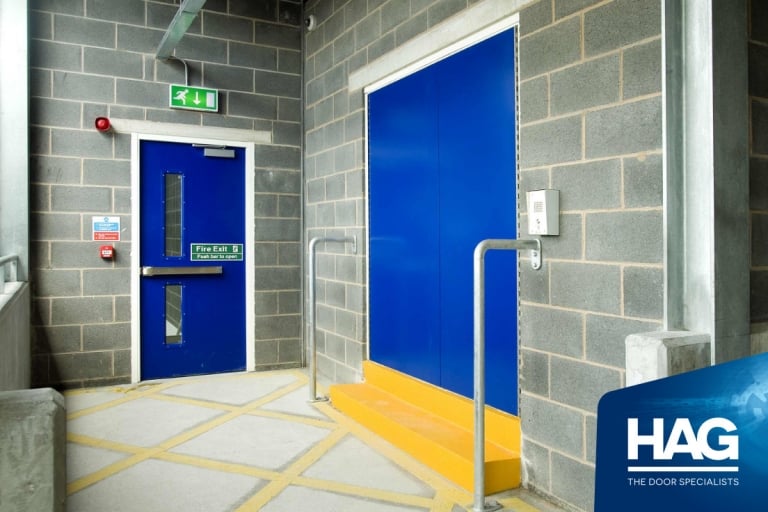

Steel Fire Exit Door

Fire exit steel doors to be used by the general public to provide safe and effective escape through the doorway with minimal effort without prior knowledge of operation. Used in offices, shops, sports centres, schools and universities. Constructed from Magnelis steel sheets with a choice of infill including honeycomb core, rock wool or solid timber. Security level is medium / high.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Thermal Protection

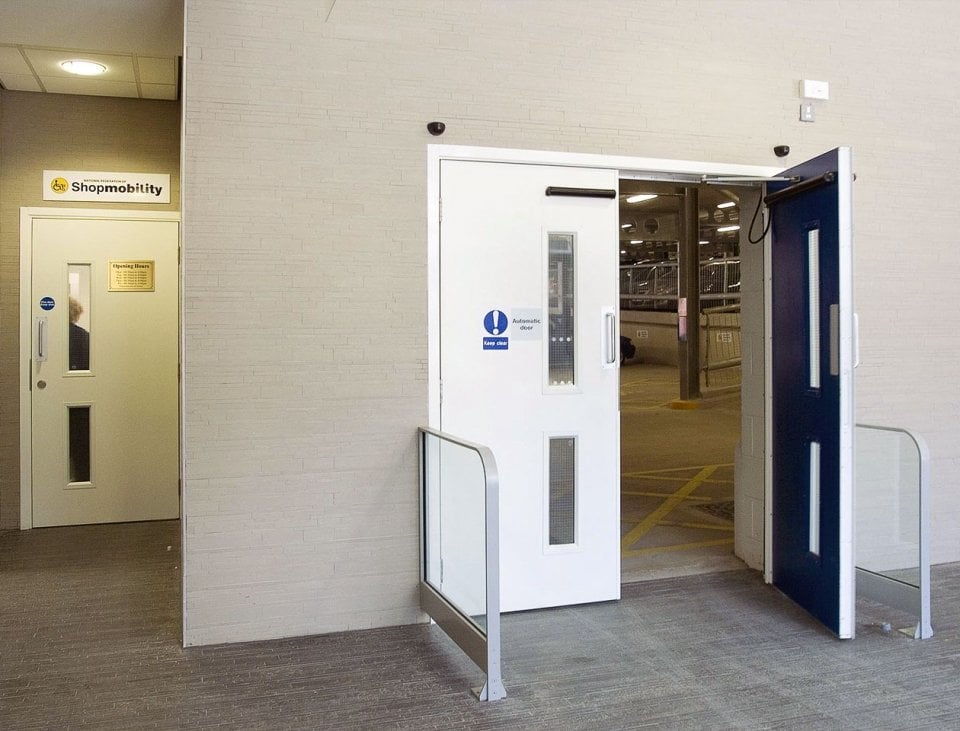

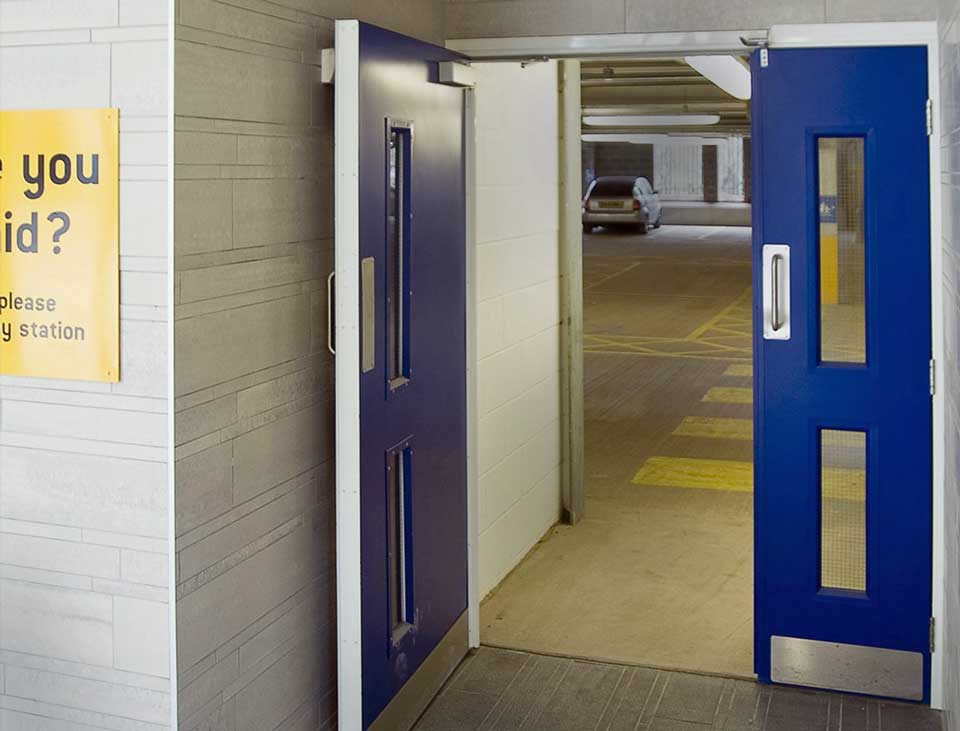

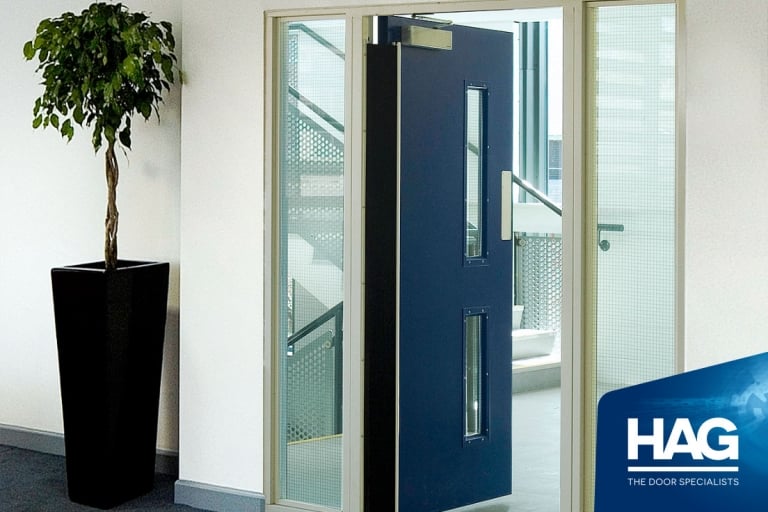

Fireguard FD01
Fire Resisting Steel Doorset

Pedestrian fire resisting steel doorset that prevents the spread of fire whilst providing high security.  Bespoke manufactured,  it can be specified with a range of fire Integrity (E) from 60 to 240 minutes. Fully optimisable with factory-fitted range of vision panels, hardware, finishes and ironmongery. Compliant to fire regulations BS EN 16034, CERTIFIRE  & FIRAS INSTALLATION CERTIFIED

  • Star Rating
    Fire Protection
  • Star Rating
    Smoke Protection
  • Star Rating
    Security Protection

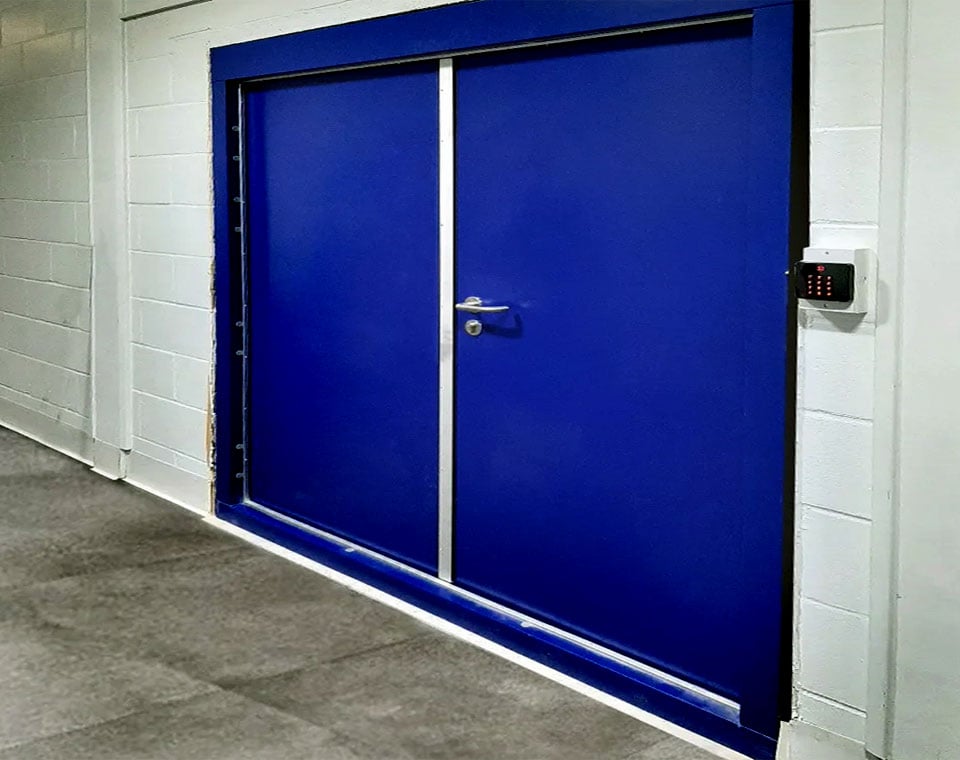

Insurance Steel Doors
SR2 SR3 SR4 SR5 Certified to LPS 1175 Series 7

Insurance certified range of high security steel doors. These steel security doors conform to LPS 1175 and are manufactured (by specification) to meet security and insurance levels SR2, SR3, SR4 or SR5, tested to LPS 1175 series 7 or PAS 24. Magnelis steel with a solid timber core. Available in standard or double openings at recommended maximum heights of 2,900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Suitable for High Usage
  • Star Rating
    Thermal Protection

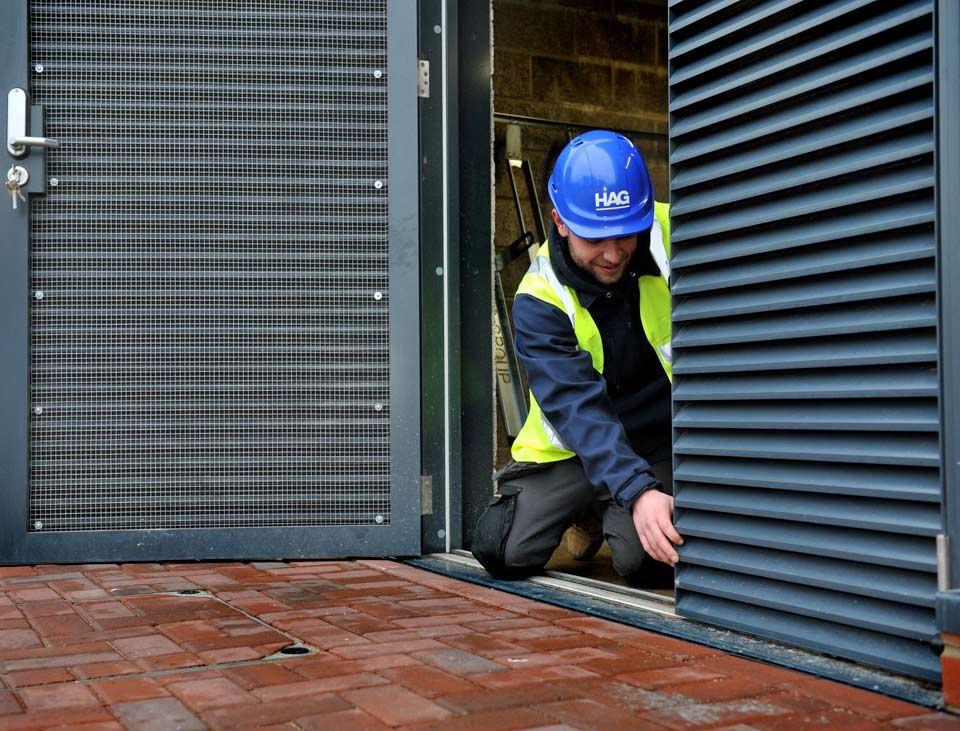

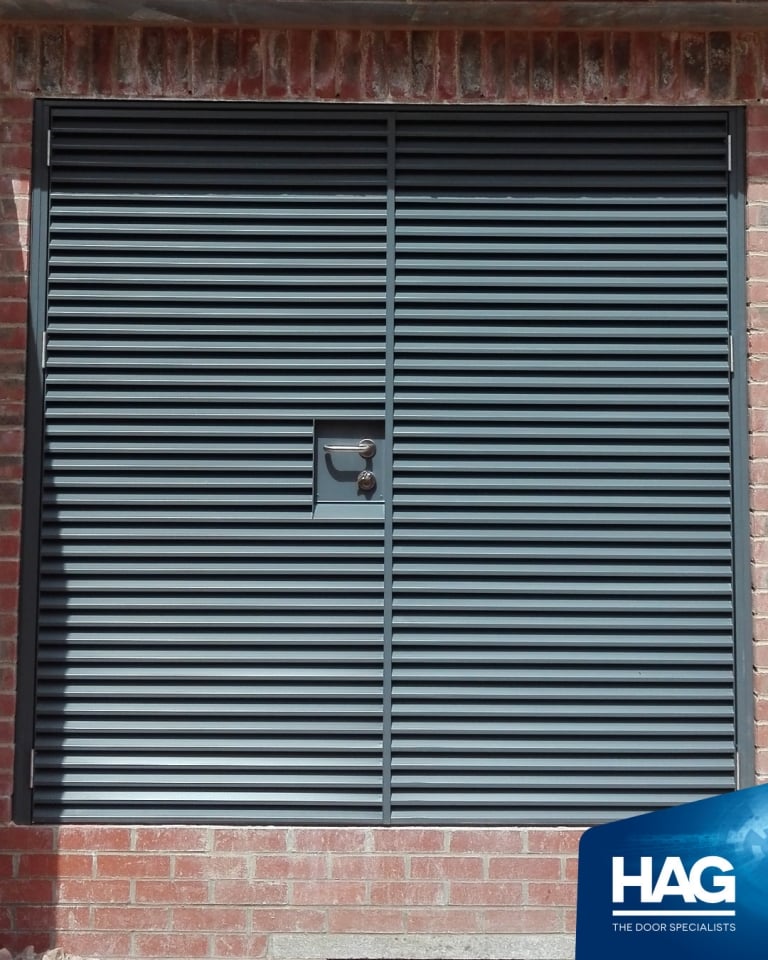

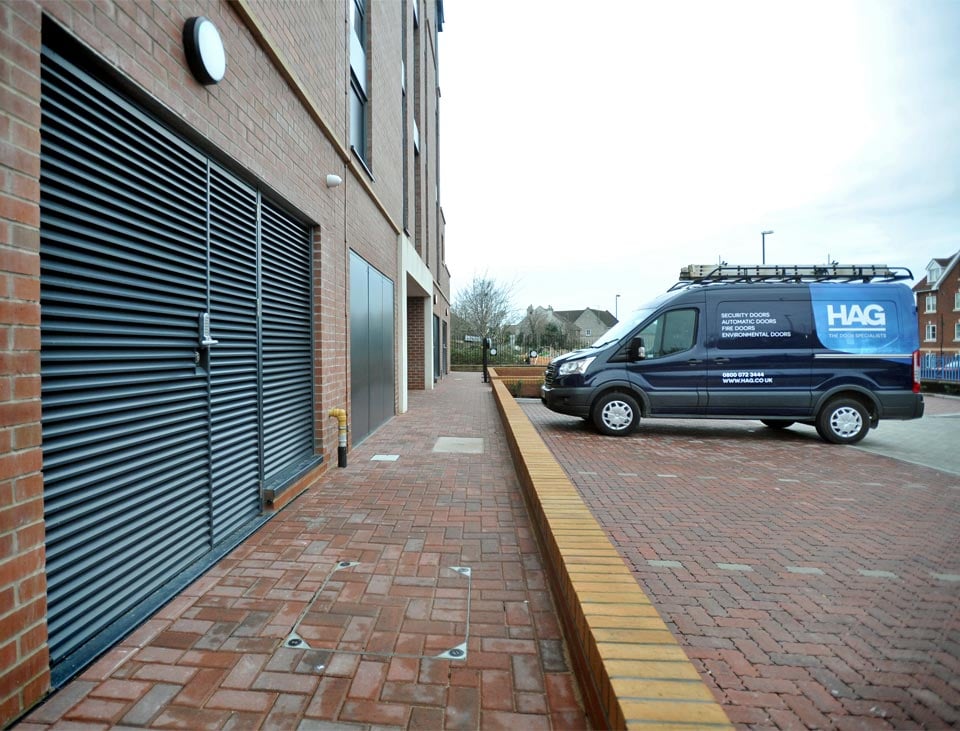

Armourdoor AD30
Louvred Steel Door

Designed to allow for gas and air flow, the AD30 is a manually-operated louvered steel door that delivers a medium level of security.
These louvred steel doors are made to order and can be tailored to meet specification requirements. Available in standard or double openings at recommended heights of up to 2900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Thermal Protection
  • Star Rating
    Air Flow

Armourdoor AD40

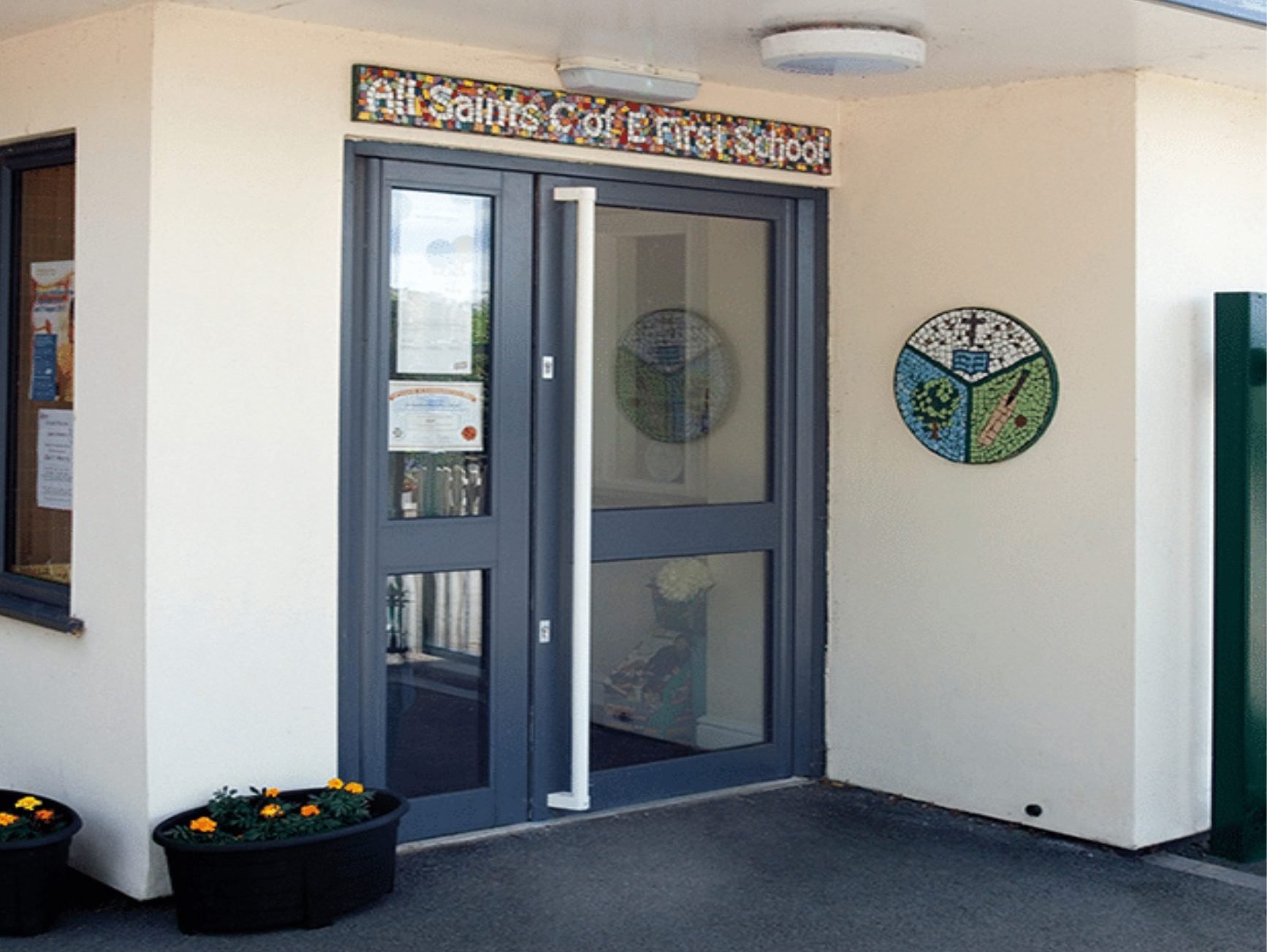

Communal Entrance Steel Door

Designed for high foot traffic, the AD40 communal entrance steel doors provide a high level of security. Double glazed units allow for through vision, and locking systems can be adapted to include access control. Available in standard or double openings at recommended heights of up to 2900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Thermal Protection
  • Star Rating
    Suitable for High Usage

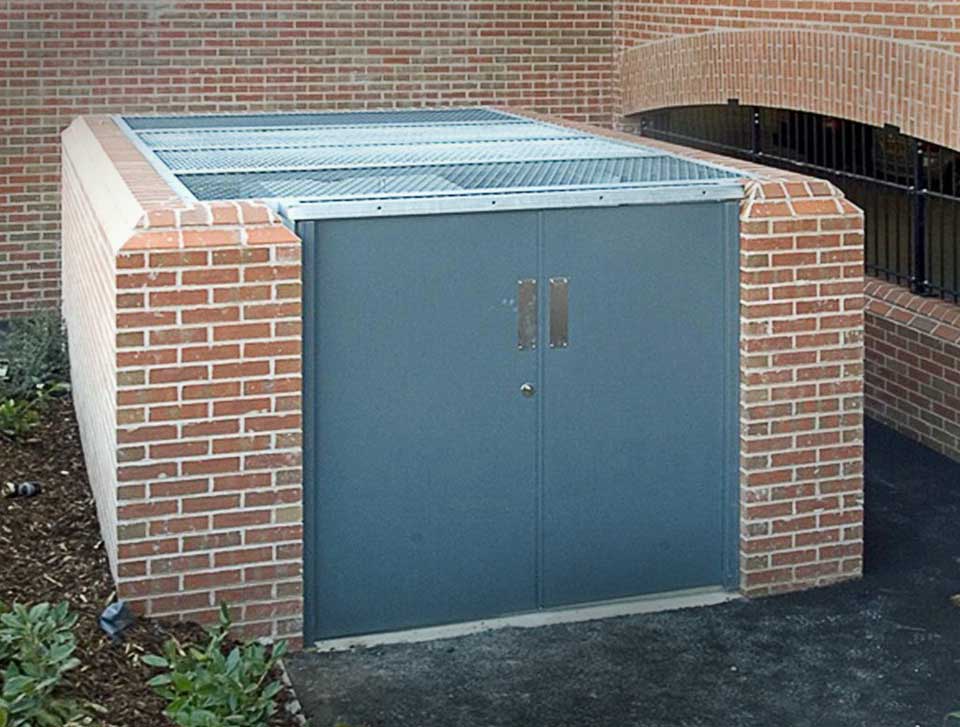

Armourdoor AD50

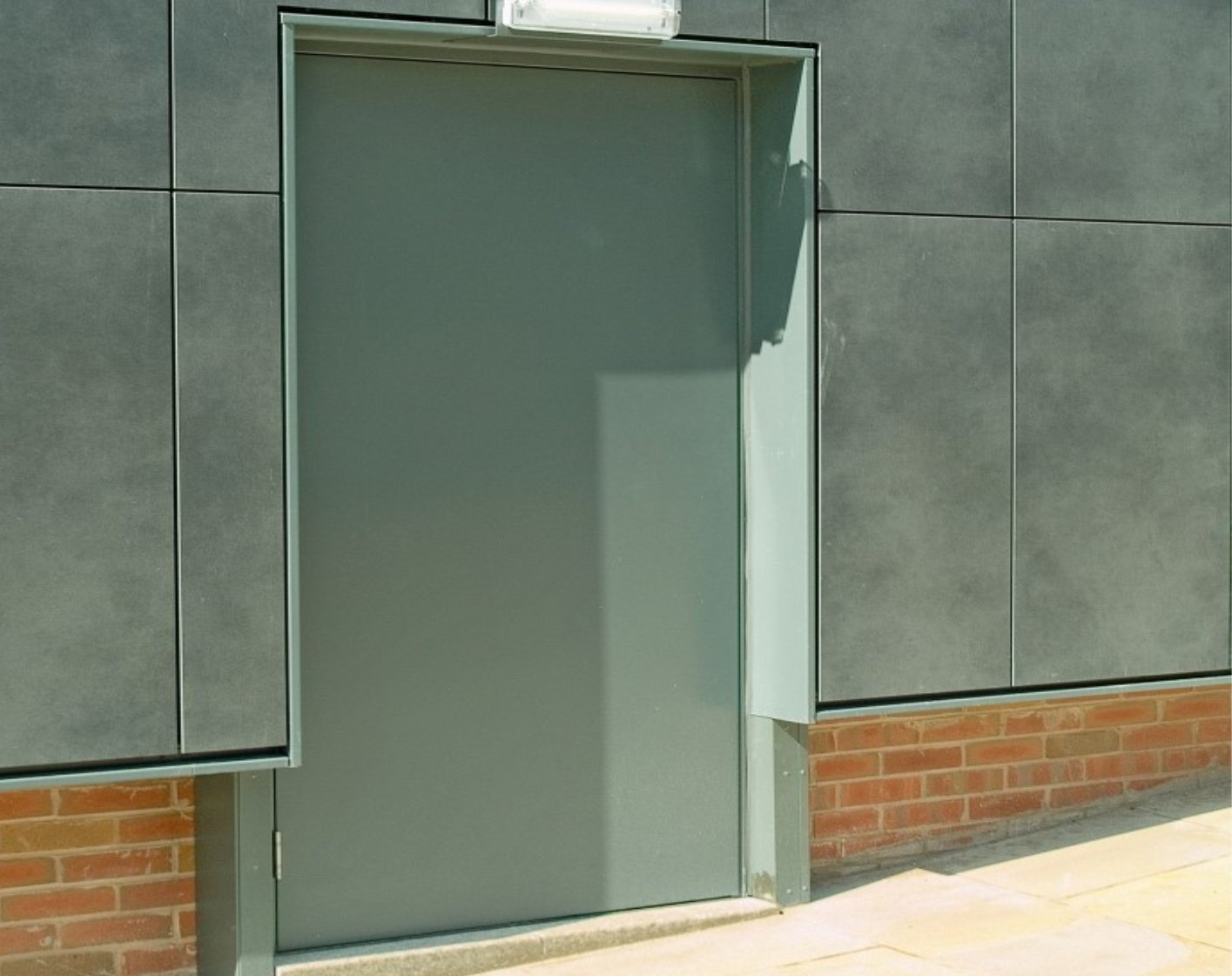

Blast Resistant Steel Door

Specifically designed to be a blast resistant steel door. Tested to BS EN 13124-2 (EXR2 & EXR3), with manual operation and triple point sash lock for additional security.

Powder coating and alternative finishes are available. Available in single or double openings at recommended heights of up to 2900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Thermal Protection
  • Star Rating
    Blast Protection

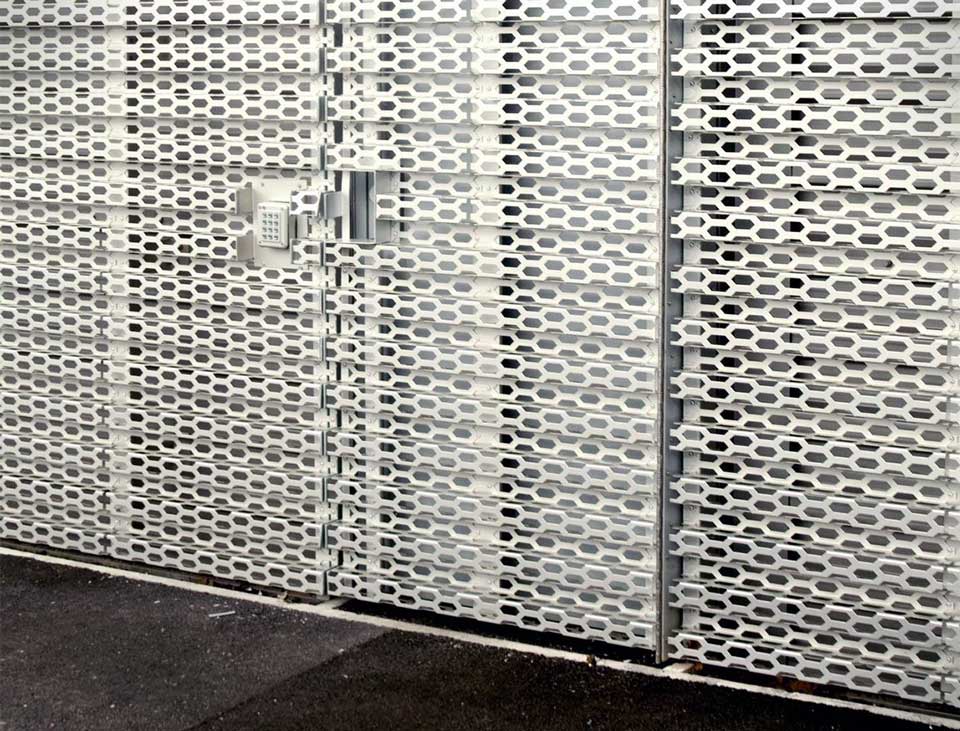

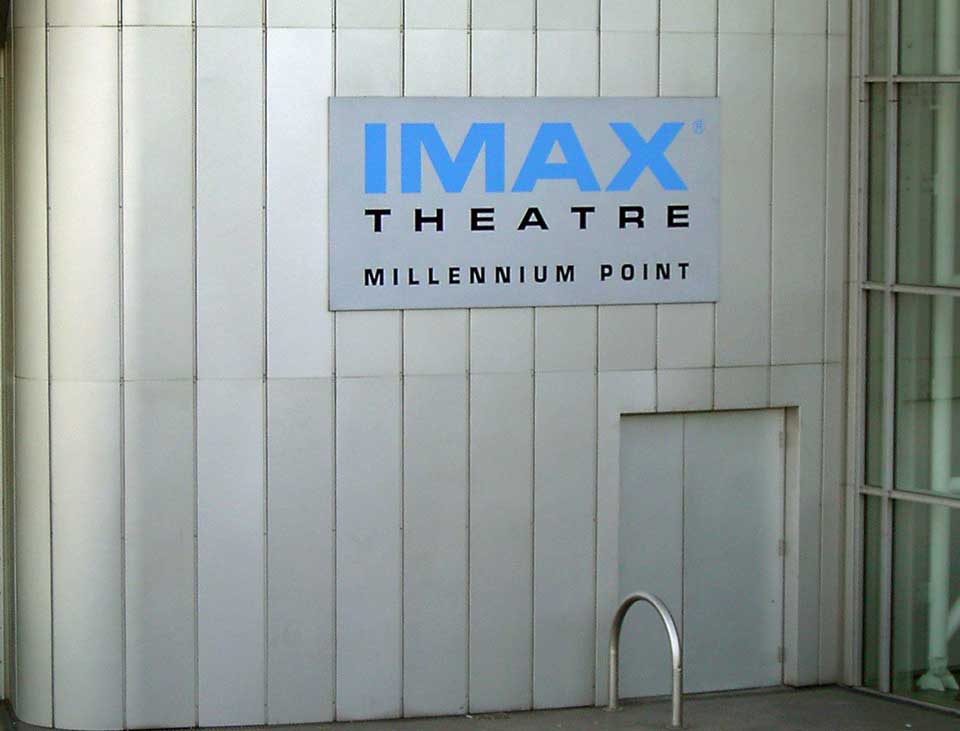

Armourdoor AD60
Acoustic Soundproof Steel Door

An acoustic soundproof steel door designed for soundproofing whilst providing a medium level of security.

Tested to EN ISO 717-1, the door is manually operated and can provide an acoustic reduction of 35 dB, 45 dB or 50 dB.  Available in single or double openings at recommended heights of up to 2900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Acoustic Protection
  • Star Rating
    Suitable for High Useage

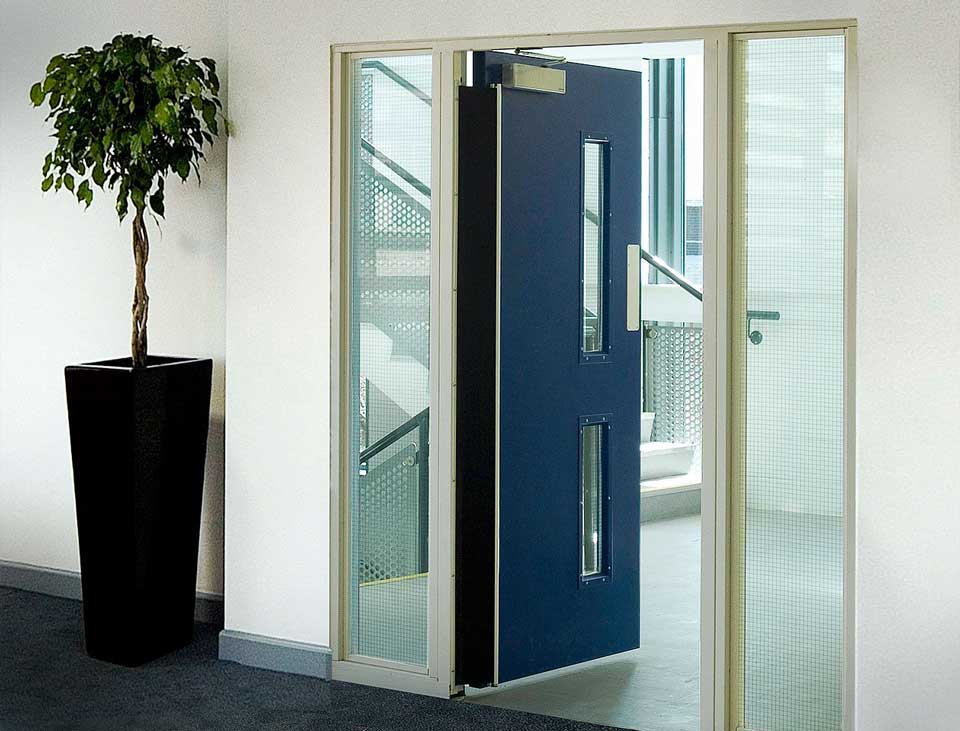

Armourdoor AD70
Internal Steel Door

Offering a medium level of security within the premises, the Armourdoor AD70 internal steel door has been designed for frequent use.

Finish options include powder coating and a variety of wood grain laminate. Available in single or double openings at recommended heights of up to 2900 mm.

  • Star Rating
    Security Protection
  • Star Rating
    Thermal Protection
  • Star Rating
    Suitable for High Useage

How to meet your legal requirements

by assessing and specifying steel door products correctly

By watching this RIBA-accredited video you can support your professional development (CPD).

This video will show you how to correctly assess and specify steel doors across the following criteria:

1. Introduction

HAG Ltd. have been providing quality bespoke steel doors, manufactured to suit specific site requirements, to companies in the UK and across the world for over 30 years. We know it can be difficult to find all the information necessary to choose the right doors for your premises, so we’ve put together this Complete Guide steel doors to help make the process easier.

2. What are Steel Doors?

The installation of a steel door product provides the ultimate in protection. Intruders will not be able to breach the steel door or framework with the same ease as a traditional timber door.

Locking devices and hardware incorporated in the HAG steel door system are also designed specifically to withstand such attacks and, with the additional benefits of fire protection, acoustic and thermal insulation make it the product of choice for today’s specifiers.

There does not need to be a compromise between style, security and energy efficiency for your property. As well as maintaining a robust exterior appearance, the range of steel doors can provide everything the modern building requires, such as sound and heat-loss reduction.

3. The components that make up a doorset

There are many components that make up the design of a steel doorset and work together to provide the best possible security and keep your property safe from damage or ingress.

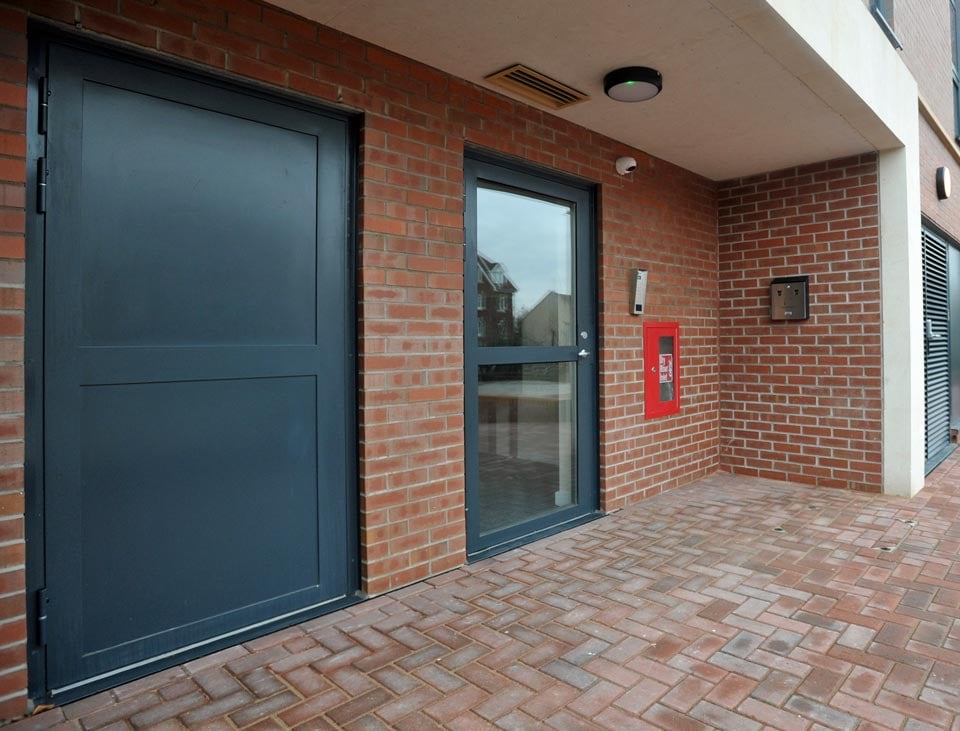

Armourdoor AD05 General Purpose Steel Door

Door frame

The door frame is composed of extruded galvanised steel of at least 1.5 mm thickness.

Door leaf

The door leaf is pressed from galvanised steel of at least 0.9 mm thickness.

Infill

The type of infill depends on the specification of the door – for instance, thermal loss prevention would require a dense mineral wool, whilst heightened security doors may have a solid hardwood core or a lattice-work of steel plates. Entry-level door sets always have an infill of dense cardboard in a honeycomb formation, this provides a good level of insulation and sound attenuation.

Finish

The finishing consists of polyester powder, which is applied to the external surface of the door. It gives the door a strong yet aesthetically attractive finish, which is typically applied to home appliances and office furniture. However, for those doors that are subjected to the worst that weather can offer (transformer stations, seafront environments etc.) then marine-grade coatings can be employed.

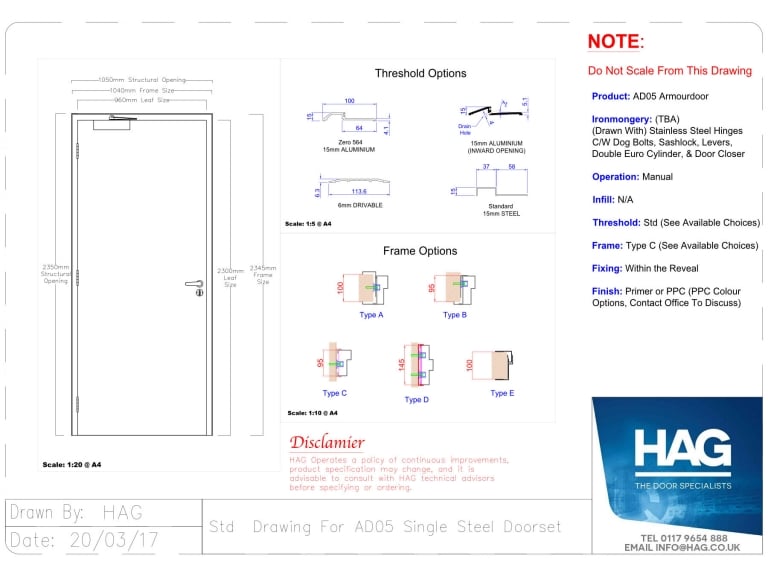

Sample specification drawing of an Armourdoor AD05 General Purpose Steel Door

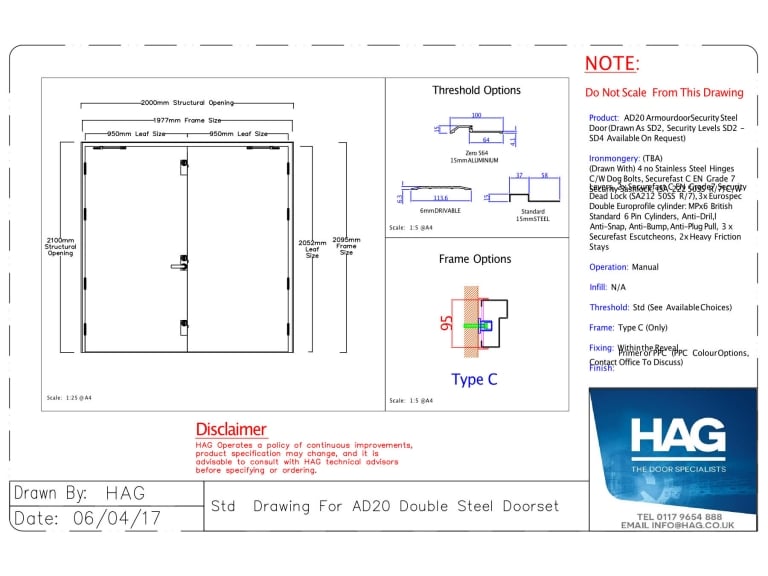

Sample specification drawing of an Armourdoor AD20 Steel Security Door

4. The benefits of installing steel doors

Strength

Steel based structure in a steel frame.

Economical

Cheaper than aluminium or timber for equal security or fire resistance.

Sound and heat containment

Use of mineral wools can limit heat loss and noise transfer.

Modern Styling

The range of additional features in the market allows designers to combine aesthetic appeal with practicality.

5. Specifications

All of our steel doors, steel security doors, external steel doors and steel door sets are made bespoke to your project using high quality galvanised steel.

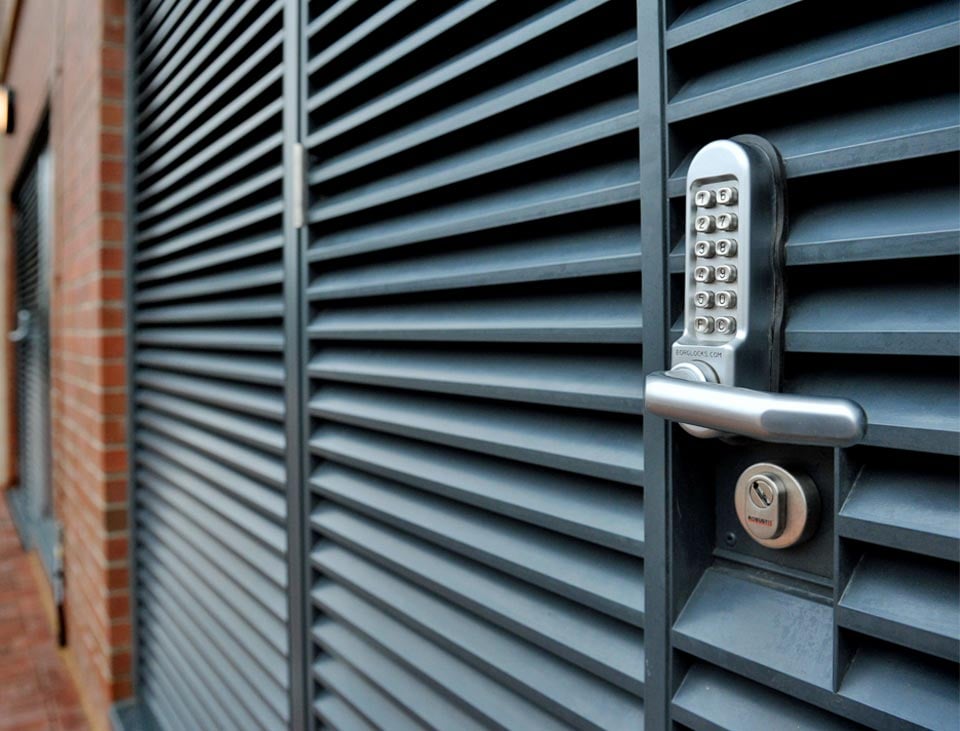

Armourdoor AD30 Louvred Steel Door

There are a number of variations to the standard HAG steel door that will benefit site-specific conditions, including the type of locking, door hardware, colour, vision panels and louvred ventilation.

When specifying a steel door for a project it’s important to consider the following:

6. Maintenance

It is important to make sure your doors are regularly serviced. Here are some of the checks that should be made regularly to ensure the safe operation of your steel door and prolong the life of the product.

Hinges

Check all hinges for loose attaching screws, hinge pin wear or other notable defects. The door should always swing freely and smoothly without obstruction from the opened to latched (when latching device is used) position.

Lock sets, panic devices, fire exit hardware

Check all lock sets for loose attaching screws, latch wear or other notable defects. The door should always latch freely and smoothly without obstruction.

Strike plate

The strike plate should be firmly attached to the frame or inactive leaf of a pair of doors.

Closing devices

Check all closing devices for loose attaching screws, linkage arm and pin wear, fluid leakage or other notable defects.

Flush bolts

Check all flush bolts for loose attaching screws, rod bolt adjustment and strike plate (on both door and frame if so equipped) attachment.

Glass lights

The glazing material should be checked for cracks and/or missing pieces of glazing.

Door and frame finish

A general visual inspection of the door and frame finish should be periodically conducted.

Unobstructed operation

Fire rated and/or smoke control assemblies are specified and installed to meet “safety to life code requirements.”

Gasketing / weather-stripping

A visual and operational inspection is periodically necessary for gaskets and weather strips such as perimeter and threshold seals.

7. Safety Standards for Steel Doors

Security of the HAG steel door range is compliant with BS EN 1627:2011 (the standard for burglar resistance of pedestrian door sets, windows, curtain walling, grilles and shutters) and/or PAS 24:2016 (the standard for enhanced security performance requirements for door assemblies).

Considerations in relation to fire.

Taken together all these components make up a whole system called a “doorset”.  BS EN 12519 defines a doorset as “supplied complete with all essential parts from a single source and for which the main intended use is the access of pedestrians.”

Following the tragedy of Grenfell Tower in June 2017, the DHF / Secured by Design / Fire Industry Association published A Guide for Selecting Flat Entrance Doorsets (PDF download)   HAG recommends that all specifiers read this.  This makes the point that there is no conflict between fire and security with Building Regulations ADB (fire) and ADQ (security) carrying equal weight with neither taking precedence over the other. It explains why only factory produced doorsets can meet both ADB and ADQ.

HAG recommends that specifiers seek approval of the ‘Responsible Person’ as defined by Fire Safety Order (FSO) 2005 to confirm that the fire doorset meets the building’s fire safety requirements

Sources:

https://www.wintechtesting.com/2018/07/22/pas-24-certification/

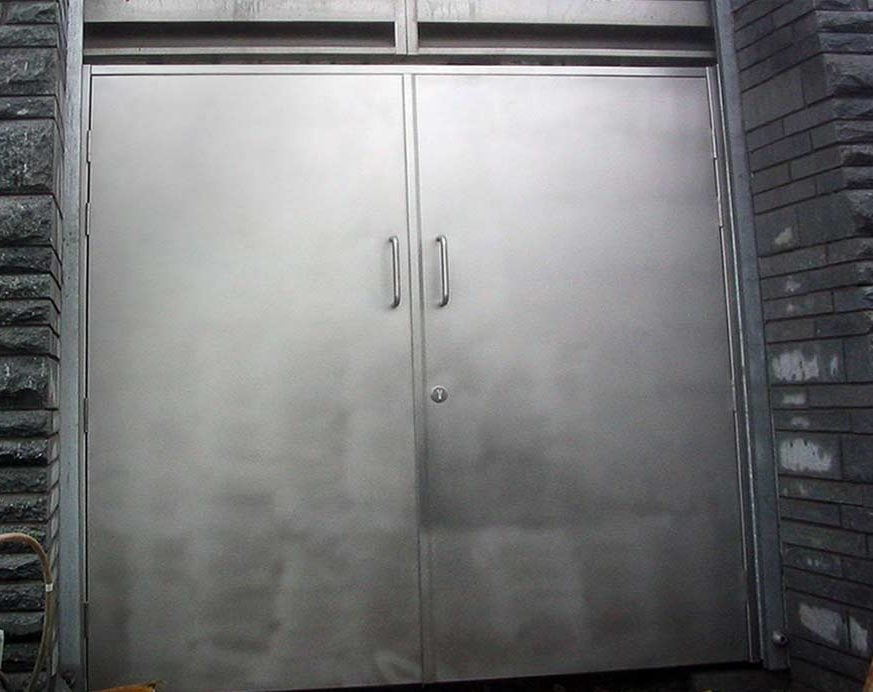

Armourdoor AD20 High Security Steel Door

8. FAQs

Steel doors are stronger than their aluminium counterpart, compatible with fire wall requirements and are traditionally more economical.

Conventionally, doors are not manufactured to be watertight. Installation of seals and thresholds are required to ensure water resistance in normal environments.

For extreme applications, specialised watertight / airtight door systems are available.

*Additional information regarding water resistance may be found in SDI 127H.

Electro-galvanised steel, or zintec, is the industry norm with stainless steel grades 316 or 304 available for those conditions that require the extra weather resistance properties they provide.

Galvanised steel is grade S275 mild steel sheet that has been galvanised through a process called electrolysis. This is applied at point of manufacture and is therefore part of the structural make-up of the material, as opposed to a post manufacturing additive, such as hot-dip galvanising.

When external prime paint is applied, galvanized steel provides high quality resistance to corrosion and rusting. SDI (Steel Door Institute) recommends use of the A Series specification of A40 or A60 for primer adhesion. The A60 specification is considered better than the A40 specification with respect to rust protection. However, SDI does not advocate the use of G-series due to its lower quality primer adhesion attributes.

Where doors have been fire-rated, such clearances are subject to regulation under NFPA 80, “Fire Doors & Other Opening Protectives”. The clearance between the door and frame must occupy a space of at most 1/8″. Clearances between the adjacent edges of two doors must be 3/16″. Clearance from the lowest point of the door to the lowest point of the frame must not exceed 3/4″. Clearance between the door face and the stop must be 1/16″.

SDI 100 A250.8-2.1.8 details more information on clearance.

Among the factors that make up the cost of the door is the location. This informs the material quality and finish and security level, which in turn drives the specification of ironmongery and hardware.

No, all HAG Steel Doors and Steel Door sets are bespoke manufactured to site requirements.

Depending on the required insulation (U Value), they can be made from either a honeycomb cardboard, mineral wool or polyurethane.

The relevant safety standards for steel doors are:

  • BS EN 1627:2011 which is the standard for burglar resistance of pedestrian door sets, windows, curtain walling, grilles and shutters.
  • PAS 24 which is the standard for enhanced security performance requirements for door assemblies.

Compared to a wood or aluminium door, a steel door provides superior strength with better resistance to attack.

A doorset is a whole door system. It includes the door leaf, door frame, glazing, seals and intumescents, hinges, door furniture, finish, signage and door closer mechanism. It is defined by BS EN 12519 as “supplied complete with all essential parts from a single source”.

A doorset is designed and tested as one unit by the manufacturer. It is this doorset that is certified to the appropriate standards and issued with a certificate of conformance. Because a doorset is manufactured in a factory, it can be produced to tight tolerances under high quality assurance standards and rigorously tested prior to delivery to site.

In the door industry, the term ‘door’ is frequently used as shorthand for a ‘doorset’.

9. Why choose HAG Ltd Steel Doors?

With a wide range of doors available, businesses and homeowners are assured to find the appropriate door system for their premises. Our experience since 1983 in manufacturing, design, installation and maintenance helps us to produce Steel Doors suited to your exact needs and requirements.

Custom Manufacturing

HAG Ltd have been manufacturing roller shutter for over 30 years.

Quality Materials

Constructed from steel with quality finishes, HAG Ltd uses the best materials for optimum protection, sleek aesthetic and durable products.

Wide Range of Solutions

Select from a wide range of products including general purpose Steel Doors, Fire Exit Doors, Fire Rated Steel Doors, High Security Steel Doors, Insurance Rated Steel Doors, Louvred Steel Doors, Communal Entrance Doors, Blast Resistant Doors, Acoustic Steel Doors and Internal Steel Doors.

Design

Available with a variety of features and operations and can be specified and designed subject to client’s requirements.

10. Services offered by HAG Ltd.

Design

Benefit from experience and knowledge with our Door System Design service. HAG can help you meet your specification requirements by designing a door system tailored to your existing premises or building design.

Installation

HAG provide an unequaled quality service during the installation process, with in-house qualified engineers equipped with industry relevant training and experience. Full contractual compliances are adhered to, with all engineers trained in all aspects of site process and management.

Maintenance and Repair Service

HAG operate 24/7, 365 days a year. We provide a skilled service and repair engineers who are qualified to NVQ level 2 to provide responsive and effective solutions.

HAG offer 12-month warranty on all new products, which means your products are guaranteed to work with efficiency and ease. At the end of the 12 month, you will be given the option to extend your warranty service for your chosen time span.

Powder Coating

High quality powder coating creates a professional finish to HAG products. A durable, fade resistant, long lasting finish applied by an award winning company. HAG powder coating provides an unparalleled finish for aluminium and steel products.
